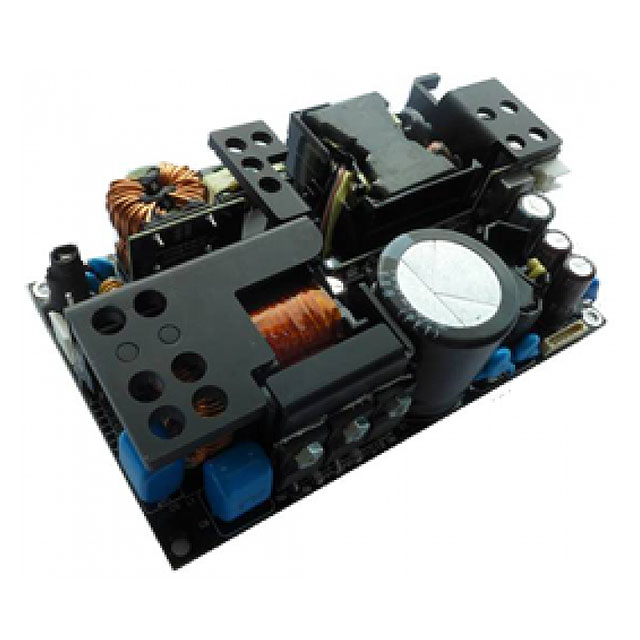

MDS-400APB24 AA
ActiveDelta Electronics
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDS-400APB24 AA
ActiveDelta Electronics
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDS-400APB24 AA |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, UL, SIQ, CE, EN, CB Scheme |
| Current - Output 1 | 8.33 A |
| Efficiency | 93 % |
| Features | Remote On/Off, Standby Output, PFC, Universal Input, Remote Sense |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 200 W |
| Power (Watts) | 400 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.4 " |
| Size / Dimension [z] | 35.6 mm |
| Standard Number | 55011, 50581, 55032, 60950-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 145.16 | |
| 5 | $ 140.70 | |||
| 10 | $ 136.23 | |||
| 30 | $ 131.76 | |||
| 60 | $ 127.30 | |||
Description
General part information
MDS-400 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
