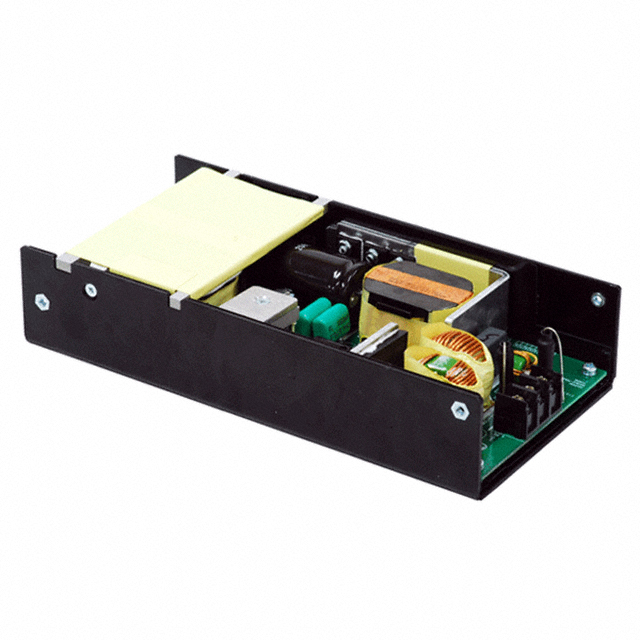

MDS-400AUS19 BA
ActiveDelta Electronics
AC/DC CONVERTER 19V 300W
Deep-Dive with AI
Search across all available documentation for this part.
MDS-400AUS19 BA
ActiveDelta Electronics
AC/DC CONVERTER 19V 300W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDS-400AUS19 BA |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB Scheme, EN, UL |
| Current - Output 1 | 15.8 A |
| Efficiency | 91 % |
| Features | Remote Sense, Standby Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 300 W, 400 W |
| Size / Dimension [x] | 198 mm |
| Size / Dimension [x] | 7.8 in |
| Size / Dimension [y] | 3.82 in |
| Size / Dimension [y] | 97 mm |
| Size / Dimension [z] | 1.63 in |
| Size / Dimension [z] | 41.5 mm |
| Standard Number | 55011, 50581, 55032, 60950-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 146.62 | |
| 5 | $ 138.13 | |||
| 10 | $ 134.63 | |||
| 25 | $ 130.55 | |||
Description
General part information
MDS-400 Series
Open Frame AC DC Converters 1 Output 19V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
