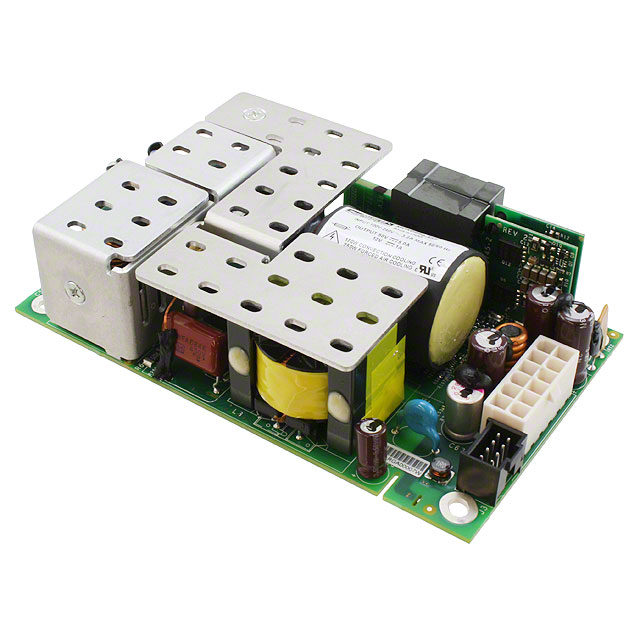

MVAC250-48AFD

Obsolete

Murata Power Solutions Inc.

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250W @ 250LFM, 170 W, 90V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

MVAC250-48AFD

Obsolete

Murata Power Solutions Inc.

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250W @ 250LFM, 170 W, 90V AC TO 264V AC

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MVAC250-48AFD

Applications	ITE (Commercial), Medical
Approval Agency	CCC, CE, VDE, CB, cURus
Current - Output 1	5.2 A
Current - Output 2	1 A
Current - Output 3	2 A
Efficiency	93 %
Features	Universal Input, Remote Sense, Hot Swappable, Remote On/Off, Standby Output, PFC, Load Sharing
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	170 W
Power (Watts)	250 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	50 V
Voltage - Output 2	12 V
Voltage - Output 3	5 V

MVAC250 Series

Part	Voltage - Output 2	Mounting Type	Efficiency	Features	Voltage - Isolation	Voltage - Output 1	Applications	Current - Output 1	Current - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Power (Watts)	Type	Voltage - Output 3	Current - Output 3	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MVAC250-48F	12 V	Chassis Mount	93 %	Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	50 V	ITE (Commercial) Medical	5.2 A	1 A	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	CB CCC CE cURus VDE	2	-10 °C	70 °C	90 VAC	264 VAC	170 W	250 W	Open Frame
Murata Power Solutions Inc. MVAC250-12AFD	12 V	Chassis Mount	93 %	DC Input Capable Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	12 V	ITE (Commercial) Medical	20.8 A	1 A	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	CB CCC CE cURus VDE	3	-10 °C	70 °C	90 VAC	264 VAC	170 W	250 W	Open Frame	5 V	2 A
Murata Power Solutions Inc. MVAC250-48AFD	12 V	Chassis Mount	93 %	Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	50 V	ITE (Commercial) Medical	5.2 A	1 A	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	CB CCC CE cURus VDE	3	-10 °C	70 °C	90 VAC	264 VAC	170 W	250 W	Open Frame	5 V	2 A
Murata Power Solutions Inc. MVAC250-24AFT		Chassis Mount	93 %	Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	4000 V	24 V	ITE (Commercial) Medical	10.4 A		5 in	3 "	127 mm			1.4 "	CB CE cURus VDE	1	-10 °C	70 °C	90 VAC	264 VAC	170 W	250 W	Open Frame			76.2 mm	35.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MVAC250 Series

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250W @ 250LFM, 170 W, 90V AC TO 264V AC

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
