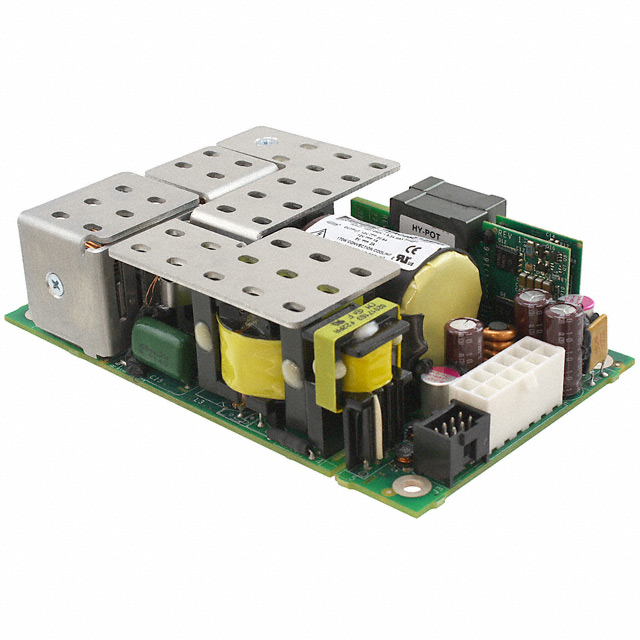

MVAC250-12AFD
ObsoleteMurata Power Solutions Inc.
AC/DC CONVERTER 2X12V 5V 170W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MVAC250-12AFD
ObsoleteMurata Power Solutions Inc.
AC/DC CONVERTER 2X12V 5V 170W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MVAC250-12AFD |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CCC, CE, VDE, CB, cURus |
| Current - Output 1 | 20.8 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 2 A |
| Efficiency | 93 % |
| Features | Hot Swappable, Load Sharing, Universal Input, Remote On/Off, DC Input Capable, Remote Sense, Standby Output, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 170 W |
| Power (Watts) | 250 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | 5 V |
MVAC250 Series
| Part | Voltage - Output 2 | Mounting Type | Efficiency | Features | Voltage - Isolation | Voltage - Output 1 | Applications | Current - Output 1 | Current - Output 2 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Approval Agency | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Power (Watts) | Type | Voltage - Output 3 | Current - Output 3 | Minimum Load Required | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 12 V | Chassis Mount | 93 % | Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 4000 V | 50 V | ITE (Commercial) Medical | 5.2 A | 1 A | 5 in | 3 " | 127 mm | 38.1 mm | 76.2 mm | 1.5 " | CB CCC CE cURus VDE | 2 | -10 °C | 70 °C | 90 VAC | 264 VAC | 170 W | 250 W | Open Frame | |||||
Murata Power Solutions Inc. | 12 V | Chassis Mount | 93 % | DC Input Capable Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 4000 V | 12 V | ITE (Commercial) Medical | 20.8 A | 1 A | 5 in | 3 " | 127 mm | 38.1 mm | 76.2 mm | 1.5 " | CB CCC CE cURus VDE | 3 | -10 °C | 70 °C | 90 VAC | 264 VAC | 170 W | 250 W | Open Frame | 5 V | 2 A | |||
Murata Power Solutions Inc. | 12 V | Chassis Mount | 93 % | Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 4000 V | 50 V | ITE (Commercial) Medical | 5.2 A | 1 A | 5 in | 3 " | 127 mm | 38.1 mm | 76.2 mm | 1.5 " | CB CCC CE cURus VDE | 3 | -10 °C | 70 °C | 90 VAC | 264 VAC | 170 W | 250 W | Open Frame | 5 V | 2 A | |||
Murata Power Solutions Inc. | Chassis Mount | 93 % | Hot Swappable Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 4000 V | 24 V | ITE (Commercial) Medical | 10.4 A | 5 in | 3 " | 127 mm | 1.4 " | CB CE cURus VDE | 1 | -10 °C | 70 °C | 90 VAC | 264 VAC | 170 W | 250 W | Open Frame | 76.2 mm | 35.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MVAC250 Series
Open Frame AC DC Converters 3 Output 12V 12V 5V 90 ~ 264 VAC Input
