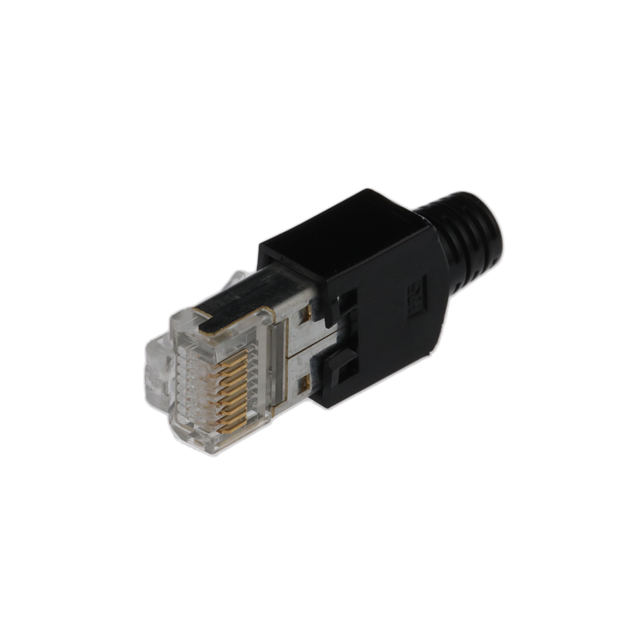

TM11AP-88P(03)

Active

Hirose Electric USA, Inc.

CONN MOD PLUG

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN MOD PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	TM11AP-88P(03)

Cable Type	Round Cable, Not Specified
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Polycarbonate (PC)
Length [x]	30.2 mm
Length [x]	1.189 "
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat3
Termination	Crimp
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	26 AWG

Part	Contact Finish	Number of Positions/Contacts	Connector Type	Contact Material	Termination	Housing Material	Current Rating (Amps)	Wire Gauge	Cable Type	Shielding	Length [x]	Length [x]	Color	Voltage Rating	Features	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Ratings
Hirose Electric USA, Inc. TM11AP1-88P	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	IDC	Polycarbonate (PC)	0.5 A	26 AWG	Round Cable Not Specified	Unshielded	30.2 mm	1.189 "	Translucent - Clear - Beige Molded Boot	125 VDC
Hirose Electric USA, Inc. TM11AP1-88P(03)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	IDC	Polycarbonate (PC)	0.5 A	26 AWG	Round Cable Not Specified	Shielded	30.2 mm	1.189 "	Translucent - Clear	125 VDC	Strain Relief
Hirose Electric USA, Inc. TM11AP-88P(01)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	Crimp	Polycarbonate (PC)			Round Cable Not Specified		30.2 mm	1.189 "	Translucent - Clear			50 µin	1.27 µm	26 AWG	27 AWG	Cat3
Hirose Electric USA, Inc. TM11AP-88P(03)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	Crimp	Polycarbonate (PC)			Round Cable Not Specified		30.2 mm	1.189 "	Translucent - Clear			50 µin	1.27 µm	26 AWG	27 AWG	Cat3
Hirose Electric USA, Inc. TM11AP-88P(61)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	Crimp	Polycarbonate (PC)			Round Cable Not Specified		30.2 mm	1.189 "	Translucent - Clear					26 AWG	27 AWG	Cat3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.38

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Cat3 Crimp
