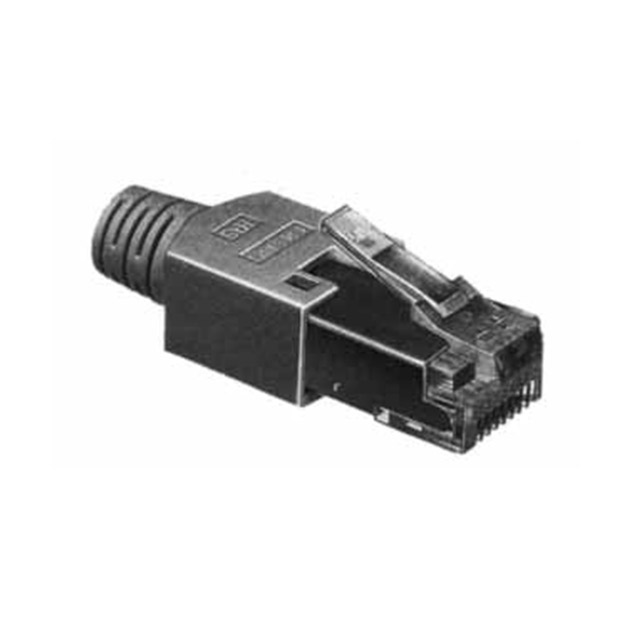

TM11AP1-88P

Active

Hirose Electric USA, Inc.

MODULAR CONNECTORS / ETHERNET CONNECTORS 8P M MODULAR PLG EMI STRAIGHT CABLE BEIG

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

MODULAR CONNECTORS / ETHERNET CONNECTORS 8P M MODULAR PLG EMI STRAIGHT CABLE BEIG

Technical Specifications

Parameters and characteristics for this part

Specification	TM11AP1-88P

Cable Type	Round Cable, Not Specified
Color	Translucent - Clear - Beige Molded Boot
Connector Type	Plug
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Housing Material	Polycarbonate (PC)
Length [x]	30.2 mm
Length [x]	1.189 "
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Unshielded
Termination	IDC
Voltage Rating	125 VDC
Wire Gauge	26 AWG

Part	Contact Finish	Number of Positions/Contacts	Connector Type	Contact Material	Termination	Housing Material	Current Rating (Amps)	Wire Gauge	Cable Type	Shielding	Length [x]	Length [x]	Color	Voltage Rating	Features	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Ratings
Hirose Electric USA, Inc. TM11AP1-88P	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	IDC	Polycarbonate (PC)	0.5 A	26 AWG	Round Cable Not Specified	Unshielded	30.2 mm	1.189 "	Translucent - Clear - Beige Molded Boot	125 VDC
Hirose Electric USA, Inc. TM11AP1-88P(03)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	IDC	Polycarbonate (PC)	0.5 A	26 AWG	Round Cable Not Specified	Shielded	30.2 mm	1.189 "	Translucent - Clear	125 VDC	Strain Relief
Hirose Electric USA, Inc. TM11AP-88P(01)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	Crimp	Polycarbonate (PC)			Round Cable Not Specified		30.2 mm	1.189 "	Translucent - Clear			50 µin	1.27 µm	26 AWG	27 AWG	Cat3
Hirose Electric USA, Inc. TM11AP-88P(03)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	Crimp	Polycarbonate (PC)			Round Cable Not Specified		30.2 mm	1.189 "	Translucent - Clear			50 µin	1.27 µm	26 AWG	27 AWG	Cat3
Hirose Electric USA, Inc. TM11AP-88P(61)	Gold	8p8c (RJ45 Ethernet)	Plug	Phosphor Bronze	Crimp	Polycarbonate (PC)			Round Cable Not Specified		30.2 mm	1.189 "	Translucent - Clear					26 AWG	27 AWG	Cat3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded IDC
