Parameters and characteristics for this part

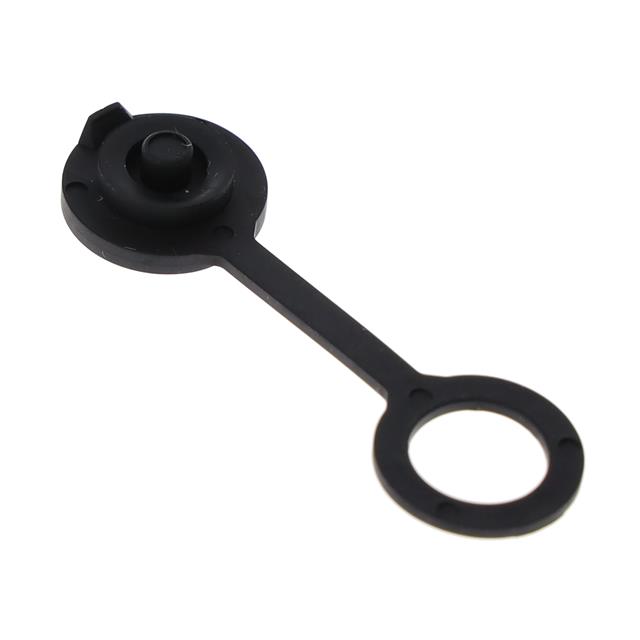

| Specification | CAP35L |
|---|---|
| Accessory Type | Cap (Cover) |
| Color | Black |
| For Use With/Related Products | 3.5mm Panel Mount Jacks |
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
Phone Connectors 3.5mm Locking Blk Body Nickel Pin
Technical documentation and resources
Phone Connectors 3.5mm Locking Blk Body Nickel Pin
| Part | Body Material | Mounting Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender | Current Rating (Amps) | Contact Material | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Includes | Termination | Housing Material | Body Color | Signal Lines | Contact Material - Plating [custom] | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Internal Switch(s) | Features | Connector Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Mating Length/Depth | Mating Length/Depth | Cable Opening [custom] | Cable Opening [custom] | Contact Material - Plating | Accessory Type | For Use With/Related Products | Color | Contact Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. | Copper Alloy | Free Hanging (In-Line) | 3.56 mm | 0.14 in | Male | 4 A | Copper Alloy | Unshielded | 85 °C | -20 C | 3.18 mm | 0.125 in 0.15 in | 3.81 mm | 1 Connector 1 Handle 1 Insulator Tube 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Black Gold | Stereo | Gold | 0.141 " | 0.125 " | 3.5 mm | Locking Sealed Strain Relief | Phone Plug | 3 | 3 | ||||||||||
Switchcraft Inc. | Brass | Free Hanging (In-Line) Right Angle | 3.5 mm | 0.138 " | Male | 4 A | Brass | Shielded | 66 °C | 0 °C | 1 Connector 1 Handle 1 Insulator Tube | Solder | Brass | Black Gold | Stereo | Gold | 0.141 " | 0.125 " | 3.5 mm | Phone Plug | 3 | 3 | 14.2 mm | 0.56 in | 6.35 mm | 0.25 in | ||||||||||
Switchcraft Inc. | Copper Alloy | Free Hanging (In-Line) | 3.56 mm | 0.14 in | Male | 4 A | Copper Alloy | Unshielded | 85 °C | -20 C | 3.18 mm | 0.125 in 0.15 in | 3.81 mm | 1 Connector 1 Handle 1 Insulator Tube 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Black Gold | Stereo | Gold | 0.141 " | 0.125 " | 3.5 mm | Sealed Strain Relief | Phone Plug | 3 | 3 | 14.2 mm | 0.56 in | ||||||||
Switchcraft Inc. | Copper Alloy | Free Hanging (In-Line) | 3.56 mm | 0.14 in | Male | 4 A | Copper Alloy | Unshielded | 85 °C | -20 C | 3.18 mm | 0.125 in 0.15 in | 3.81 mm | 1 Connector 1 Handle 1 Insulator Tube 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Black Silver | Stereo | 0.141 " | 0.125 " | 3.5 mm | Locking Sealed Strain Relief | Phone Plug | 3 | 3 | Tin | ||||||||||
Switchcraft Inc. | Copper Alloy | Free Hanging (In-Line) | 3.56 mm | 0.14 in | Male | 4 A | Copper Alloy | Unshielded | 85 °C | -20 C | 1 Connector 1 Handle 1 Insulator Tube 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Black Gold | Stereo | Gold | 0.141 " | 0.125 " | 3.5 mm | Sealed Strain Relief | Phone Plug | 3 | 3 | 14.2 mm | 0.56 in | 3.81 mm 4.45 mm | 0.15 in 0.175 in | |||||||||
Switchcraft Inc. | Copper Alloy | Free Hanging (In-Line) | 3.56 mm | 0.14 in | Male | 4 A | Copper Alloy | Unshielded | 85 °C | -20 C | 1 Connector 1 Handle 1 Insulator Tube 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Black Gold | Stereo | Gold | 0.141 " | 0.125 " | 3.5 mm | Locking Sealed Strain Relief | Phone Plug | 3 | 3 | 3.81 mm 4.45 mm | 0.15 in 0.175 in | |||||||||||
Switchcraft Inc. | Copper Alloy | Free Hanging (In-Line) | 3.53 mm | 0.139 in | Male | 4 A | Copper Alloy | Unshielded | 85 °C | -20 C | 1 Connector 1 Handle 1 Insulator Tube | Solder Eyelet(s) | Copper Alloy | Black Silver | Stereo | Silver | 0.141 " | 0.125 " | 3.5 mm | Phone Plug | 3 | 3 | 14.2 mm | 0.56 in | 7.37 mm | 0.29 in | ||||||||||
Switchcraft Inc. | Cap (Cover) | 3.5mm Panel Mount Jacks | Black | |||||||||||||||||||||||||||||||||
Switchcraft Inc. | Brass | Free Hanging (In-Line) Right Angle | 3.5 mm | 0.138 " | Male | 4 A | Brass | Shielded | 66 °C | 0 °C | 1 Connector 1 Handle 1 Insulator Tube | Solder | Brass | Silver | Stereo | Gold | 0.141 " | 0.125 " | 3.5 mm | Phone Plug | 3 | 3 | 13 mm | 0.51 in | 7.37 mm | 0.29 in | ||||||||||
Switchcraft Inc. | Brass | Free Hanging (In-Line) Right Angle | 3.5 mm | 0.138 " | Male | 4 A | Brass | Shielded | 1 Connector 1 Handle 1 Insulator Tube | Solder | Brass | Silver | Stereo | 0.141 " | 0.125 " | 3.5 mm | Phone Plug | 3 | 3 | 13 mm | 0.51 in | 7.37 mm | 0.29 in | Nickel |
