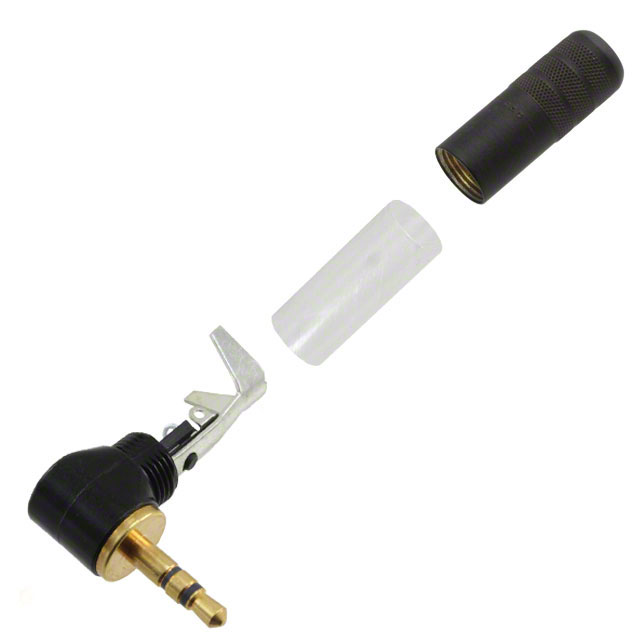

35HDRABAU

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM RA 3COND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35HDRABAU

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM RA 3COND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35HDRABAU

Actual Diameter [diameter]	0.138 "
Actual Diameter [diameter]	3.5 mm
Body Color	Gold, Black
Body Material	Brass
Cable Opening [custom]	6.35 mm
Cable Opening [custom]	0.25 in
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	4 A
Gender	Male
Housing Material	Brass
Includes	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mating Length/Depth	14.2 mm
Mating Length/Depth	0.56 in
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	66 °C
Operating Temperature [Min]	0 °C
Shielding	Shielded
Signal Lines	Stereo
Termination	Solder

35HDSN Series

Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Part	Body Material	Mounting Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender	Current Rating (Amps)	Contact Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Includes	Termination	Housing Material	Body Color	Signal Lines	Contact Material - Plating [custom]	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Features	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Mating Length/Depth	Mating Length/Depth	Cable Opening [custom]	Cable Opening [custom]	Contact Material - Plating	Accessory Type	For Use With/Related Products	Color	Contact Material - Plating [custom]
Switchcraft Inc. 35HDLSAU12	Copper Alloy	Free Hanging (In-Line)	3.56 mm	0.14 in	Male	4 A	Copper Alloy	Unshielded	85 °C	-20 C	3.18 mm	0.125 in 0.15 in	3.81 mm	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Black Gold	Stereo	Gold	0.141 "	0.125 "	3.5 mm	Locking Sealed Strain Relief	Phone Plug	3	3
Switchcraft Inc. 35HDRABAU	Brass	Free Hanging (In-Line) Right Angle	3.5 mm	0.138 "	Male	4 A	Brass	Shielded	66 °C	0 °C				1 Connector 1 Handle 1 Insulator Tube	Solder	Brass	Black Gold	Stereo	Gold	0.141 "	0.125 "	3.5 mm		Phone Plug	3	3	14.2 mm	0.56 in	6.35 mm	0.25 in
Switchcraft Inc. 35HDSAU12	Copper Alloy	Free Hanging (In-Line)	3.56 mm	0.14 in	Male	4 A	Copper Alloy	Unshielded	85 °C	-20 C	3.18 mm	0.125 in 0.15 in	3.81 mm	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Black Gold	Stereo	Gold	0.141 "	0.125 "	3.5 mm	Sealed Strain Relief	Phone Plug	3	3	14.2 mm	0.56 in
Switchcraft Inc. 35HDLSN12	Copper Alloy	Free Hanging (In-Line)	3.56 mm	0.14 in	Male	4 A	Copper Alloy	Unshielded	85 °C	-20 C	3.18 mm	0.125 in 0.15 in	3.81 mm	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Black Silver	Stereo		0.141 "	0.125 "	3.5 mm	Locking Sealed Strain Relief	Phone Plug	3	3					Tin
Switchcraft Inc. 35HDSAU15	Copper Alloy	Free Hanging (In-Line)	3.56 mm	0.14 in	Male	4 A	Copper Alloy	Unshielded	85 °C	-20 C				1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Black Gold	Stereo	Gold	0.141 "	0.125 "	3.5 mm	Sealed Strain Relief	Phone Plug	3	3	14.2 mm	0.56 in	3.81 mm 4.45 mm	0.15 in 0.175 in
Switchcraft Inc. 35HDLSAU15	Copper Alloy	Free Hanging (In-Line)	3.56 mm	0.14 in	Male	4 A	Copper Alloy	Unshielded	85 °C	-20 C				1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Black Gold	Stereo	Gold	0.141 "	0.125 "	3.5 mm	Locking Sealed Strain Relief	Phone Plug	3	3			3.81 mm 4.45 mm	0.15 in 0.175 in
Switchcraft Inc. 35HDLBN	Copper Alloy	Free Hanging (In-Line)	3.53 mm	0.139 in	Male	4 A	Copper Alloy	Unshielded	85 °C	-20 C				1 Connector 1 Handle 1 Insulator Tube	Solder Eyelet(s)	Copper Alloy	Black Silver	Stereo	Silver	0.141 "	0.125 "	3.5 mm		Phone Plug	3	3	14.2 mm	0.56 in	7.37 mm	0.29 in
Switchcraft Inc. CAP35L																																Cap (Cover)	3.5mm Panel Mount Jacks	Black
Switchcraft Inc. 35HDRANAU	Brass	Free Hanging (In-Line) Right Angle	3.5 mm	0.138 "	Male	4 A	Brass	Shielded	66 °C	0 °C				1 Connector 1 Handle 1 Insulator Tube	Solder	Brass	Silver	Stereo	Gold	0.141 "	0.125 "	3.5 mm		Phone Plug	3	3	13 mm	0.51 in	7.37 mm	0.29 in
Switchcraft Inc. 35HDRANN	Brass	Free Hanging (In-Line) Right Angle	3.5 mm	0.138 "	Male	4 A	Brass	Shielded						1 Connector 1 Handle 1 Insulator Tube	Solder	Brass	Silver	Stereo		0.141 "	0.125 "	3.5 mm		Phone Plug	3	3	13 mm	0.51 in	7.37 mm	0.29 in					Nickel
