19460100302

Active

HARTING Technology Group

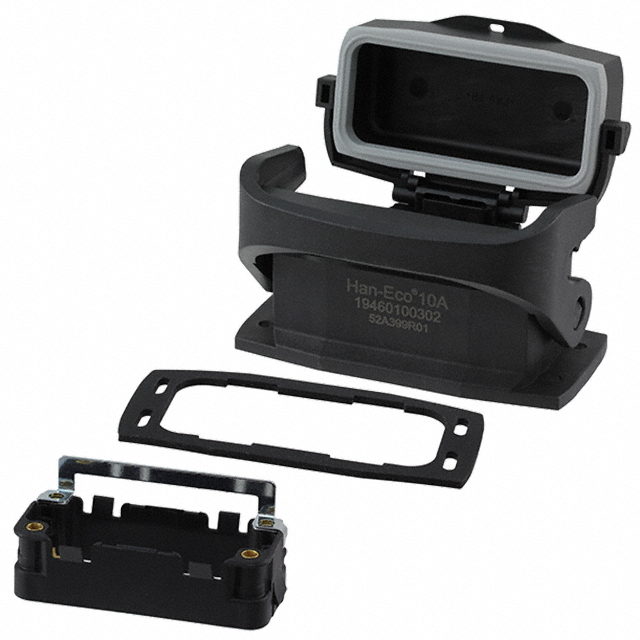

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	19460100302

Connector Type	Base - Panel Mount
Features	Cover
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Size / Dimension [x]	3.189 in
Size / Dimension [x]	81 mm
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.575 in
Size / Dimension [z]	27 mm
Size / Dimension [z]	1.063 "
Style	Bottom Entry

Part	Style	Ingress Protection	Connector Type	Lock Location	Size	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Material	Housing Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features
HARTING Technology Group 19460100546	Side Entry	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C	M25	Polyamide (PA) Nylon Glass Filled	Black
HARTING Technology Group 19460100251	Side Entry	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C	M25	Polyamide (PA) Nylon Glass Filled	Black	1.969 in	61.15 mm	50 mm	2.407 in	80.6 mm	3.173 in
HARTING Technology Group 19460100302	Bottom Entry	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C		Polyamide (PA) Nylon Glass Filled	Black	1.575 in	27 mm	40 mm	1.063 "	81 mm	3.189 in	Cover
HARTING Technology Group 19460100446	Top Entry	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C	M25	Polyamide (PA) Nylon Glass Filled	Black
HARTING Technology Group 19460100435	Top Entry	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (1) on Hood	10 A	125 °C	-40 °C	M20	Polyamide (PA) Nylon Glass Filled	Black							Cable to Cable
