19460100435

Active

HARTING Technology Group

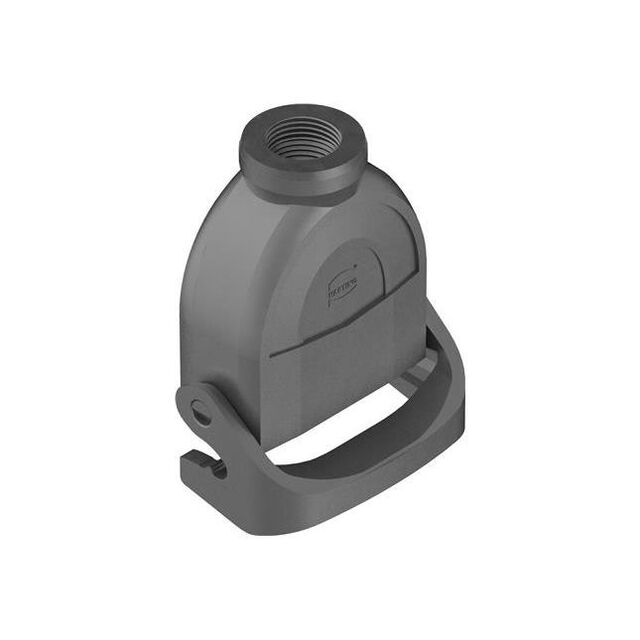

ENCLOSURE FOR CONNECTORS: HDC; SIZE 10A; FOR CABLE; HAN-ECO® A

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 10A; FOR CABLE; HAN-ECO® A

Technical Specifications

Parameters and characteristics for this part

Specification	19460100435

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Style	Top Entry
Thread Size	M20

Part	Style	Ingress Protection	Connector Type	Lock Location	Size	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Material	Housing Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features
HARTING Technology Group 19460100546	Side Entry	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C	M25	Polyamide (PA) Nylon Glass Filled	Black
HARTING Technology Group 19460100251	Side Entry	IP65 - Dust Tight Water Resistant	Base - Box Mount	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C	M25	Polyamide (PA) Nylon Glass Filled	Black	1.969 in	61.15 mm	50 mm	2.407 in	80.6 mm	3.173 in
HARTING Technology Group 19460100302	Bottom Entry	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C		Polyamide (PA) Nylon Glass Filled	Black	1.575 in	27 mm	40 mm	1.063 "	81 mm	3.189 in	Cover
HARTING Technology Group 19460100446	Top Entry	IP65 - Dust Tight Water Resistant	Hood	Locking Clip (1) on Base Bottom	10 A	125 °C	-40 °C	M25	Polyamide (PA) Nylon Glass Filled	Black
HARTING Technology Group 19460100435	Top Entry	IP65 - Dust Tight Water Resistant	Hood - Coupling	Locking Clip (1) on Hood	10 A	125 °C	-40 °C	M20	Polyamide (PA) Nylon Glass Filled	Black							Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Top Entry M20 10A IP65 - Dust Tight, Water Resistant
