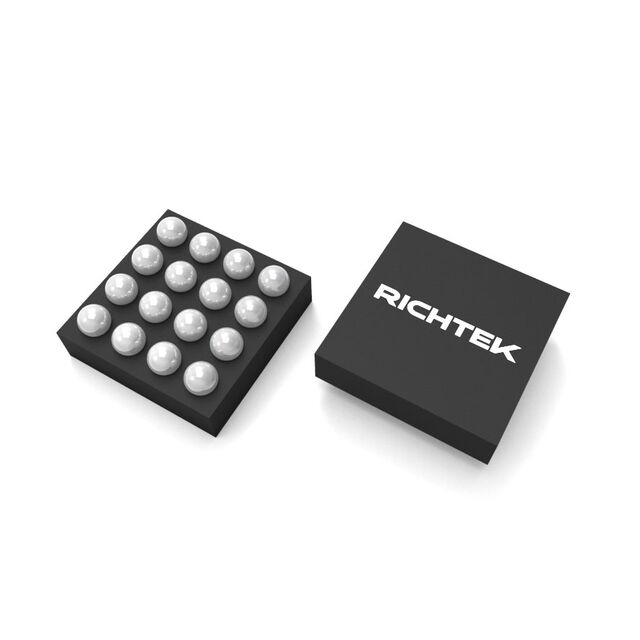

RT4730WSC
ActiveRichtek USA Inc.
PMIC FOR WEARABLE AMOLED WLCSP16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT4730WSC
ActiveRichtek USA Inc.
PMIC FOR WEARABLE AMOLED WLCSP16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT4730WSC |
|---|---|
| Applications | AMOLED Display, Converter |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | WLCSP, 16-UFBGA |
| Supplier Device Package | 16-WLCSP |
| Supplier Device Package [x] | 2.34 |
| Supplier Device Package [y] | 2.34 |
| Voltage - Input [Max] | 5.2 V |
| Voltage - Input [Min] | 2.9 V |
| Voltage - Output [Max] | 4 V |
| Voltage - Output [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.60 | |
| 10 | $ 2.34 | |||
| 25 | $ 2.20 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.76 | |||
| 500 | $ 1.54 | |||
| 1000 | $ 1.28 | |||
| Digi-Reel® | 1 | $ 2.60 | ||
| 10 | $ 2.34 | |||
| 25 | $ 2.20 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.76 | |||
| 500 | $ 1.54 | |||
| 1000 | $ 1.28 | |||
| Tape & Reel (TR) | 3000 | $ 0.88 | ||
Description
General part information
RT4730 Series
- Converter, AMOLED Display Voltage Regulator IC 1 Output 16-WLCSP (2.34x2.34)
