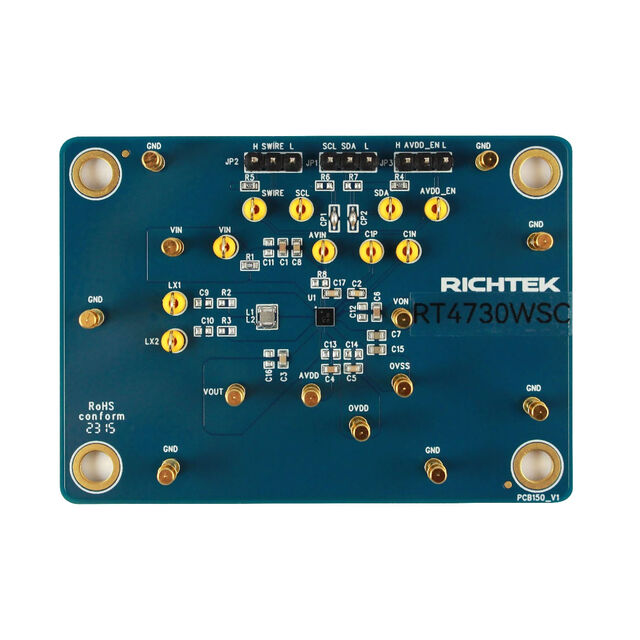

EVB_RT4730WSC

Active

Richtek USA Inc.

EVAL BOARD FOR RT4730

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL BOARD FOR RT4730

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Voltage - Output	Current - Output	Main Purpose	Regulator Topology	Utilized IC / Part	Board Type	Supplied Contents	Applications	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs
Richtek USA Inc. EVB_RT4730WSC	2.9 V	5.2 V	Non-Isolated	3	-3.3 V 3.3 V	50 mA	DC/DC Step Up	Boost	RT4730	Fully Populated	Board(s)
Richtek USA Inc. RT4730WSC	2.9 V	5.2 V										AMOLED Display Converter	Surface Mount	16-UFBGA WLCSP	85 °C	-40 °C	16-WLCSP	2.34	2.34	4 V	2.8 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.06

General part information

RT4730 - DC/DC, Step Up 3, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
