3010-20-002-12-00
ActiveCnC Tech, LLC

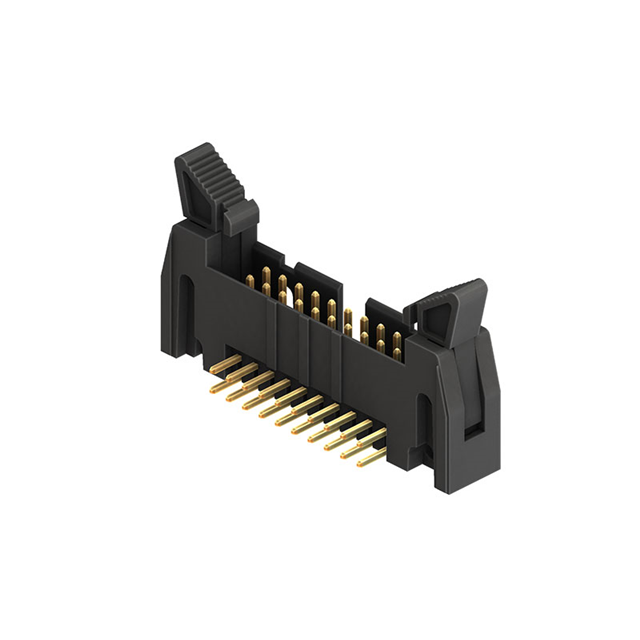

CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
3010-20-002-12-00
ActiveCnC Tech, LLC
CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3010-20-002-12-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot |
| Insulation Height | 0.327 " |
| Insulation Height | 8.3 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
3010-20 Series
| Part | Number of Rows | Connector Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Features | Contact Shape | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Number of Positions | Shrouding | Contact Finish Thickness - Mating | Contact Finish - Mating | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Termination | Current Rating (Amps) | Contact Type | Voltage Rating | Insulation Material | Contact Material | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Row Spacing [x] | Row Spacing | Cable Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | 2 | Header | Latch Lock/Eject Hooks Long | -40 °C | 105 ░C | All | 0.1 in | 2.54 mm | Keying Slot | Square | Surface Mount | 2.54 mm | 0.1 in | Board to Cable/Wire | 20 | Shrouded - 4 Wall | Flash | Gold | UL94 V-0 | 17 mm | 0.669 " | Solder | 3 A | Male Pin | 250 VAC | Nylon 9T Polyamide (PA9T) | Brass | |||||||||||
CnC Tech, LLC | 2 | Header | Latch Lock/Eject Hooks Short | -40 °C | 105 ░C | All | 0.1 in | 2.54 mm | Keying Slot | Square | Through Hole Right Angle | 2.54 mm | 0.1 in | Board to Cable/Wire | 20 | Shrouded - 4 Wall | Flash | Gold | UL94 V-0 | Solder | 3 A | Male Pin | 250 VAC | Polybutylene Terephthalate (PBT) | Brass | 0.327 " | 8.3 mm | 0.134 in | 3.4 mm | |||||||||
CnC Tech, LLC | 2 | Header | Latch Lock/Eject Hooks Long | -40 °C | 105 ░C | All | 0.1 in | 2.54 mm | Keying Slot | Square | Through Hole Right Angle | 2.54 mm | 0.1 in | Board to Cable/Wire | 20 | Shrouded - 4 Wall | Flash | Gold | UL94 V-0 | Solder | 3 A | Male Pin | 250 VAC | Polybutylene Terephthalate (PBT) | Brass | 0.327 " | 8.3 mm | 0.134 in | 3.4 mm | |||||||||
CnC Tech, LLC | 2 | Header | Push-Pull | Polarizing Key | Free Hanging (In-Line) | 20 | Male Pin | 2.54 mm | 0.1 in | Flash | 0.1 in | 2.54 mm | IDC | Gold | ||||||||||||||||||||||||
CnC Tech, LLC | 2 | Header | Latch Lock/Eject Hooks Short | -40 °C | 105 ░C | All | 0.1 in | 2.54 mm | Keying Slot | Square | Through Hole | 2.54 mm | 0.1 in | Board to Cable/Wire | 20 | Shrouded - 4 Wall | Flash | Gold | UL94 V-0 | 17 mm | 0.669 " | Solder | 3 A | Male Pin | 250 VAC | Polybutylene Terephthalate (PBT) | Brass | 0.134 in | 3.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.80 | |
| 10 | $ 1.57 | |||
| 80 | $ 1.40 | |||
| 648 | $ 1.17 | |||
| 1296 | $ 1.00 | |||
| 5184 | $ 0.89 | |||
| 10368 | $ 0.87 | |||
Description
General part information
3010-20 Series
Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
