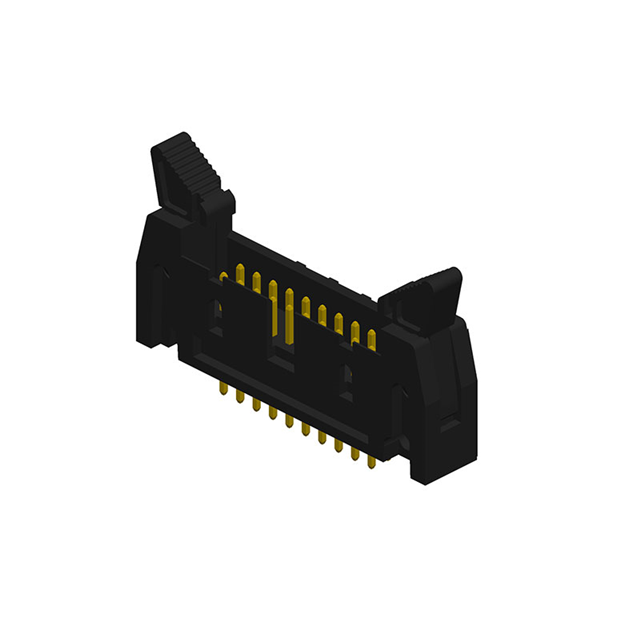

3010-20-001-12-00

Active

CnC Tech, LLC

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series

3010-20-001-12-00

Active

CnC Tech, LLC

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-20-001-12-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3010-20 Series

Part	Number of Rows	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Features	Contact Shape	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Number of Positions	Shrouding	Contact Finish Thickness - Mating	Contact Finish - Mating	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Termination	Current Rating (Amps)	Contact Type	Voltage Rating	Insulation Material	Contact Material	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Cable Termination	Contact Finish
CnC Tech, LLC 3010-20-003-13-00	2	Header	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	All	0.1 in	2.54 mm	Keying Slot	Square	Surface Mount	2.54 mm	0.1 in	Board to Cable/Wire	20	Shrouded - 4 Wall	Flash	Gold	UL94 V-0	17 mm	0.669 "	Solder	3 A	Male Pin	250 VAC	Nylon 9T Polyamide (PA9T)	Brass
CnC Tech, LLC 3010-20-002-12-00	2	Header	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	All	0.1 in	2.54 mm	Keying Slot	Square	Through Hole Right Angle	2.54 mm	0.1 in	Board to Cable/Wire	20	Shrouded - 4 Wall	Flash	Gold	UL94 V-0			Solder	3 A	Male Pin	250 VAC	Polybutylene Terephthalate (PBT)	Brass	0.327 "	8.3 mm	0.134 in	3.4 mm
CnC Tech, LLC 3010-20-002-13-00	2	Header	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	All	0.1 in	2.54 mm	Keying Slot	Square	Through Hole Right Angle	2.54 mm	0.1 in	Board to Cable/Wire	20	Shrouded - 4 Wall	Flash	Gold	UL94 V-0			Solder	3 A	Male Pin	250 VAC	Polybutylene Terephthalate (PBT)	Brass	0.327 "	8.3 mm	0.134 in	3.4 mm
CnC Tech, LLC 3010-20-041-11-00	2	Header	Push-Pull						Polarizing Key		Free Hanging (In-Line)				20									Male Pin								2.54 mm	0.1 in	Flash	0.1 in	2.54 mm	IDC	Gold
CnC Tech, LLC 3010-20-001-12-00	2	Header	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	All	0.1 in	2.54 mm	Keying Slot	Square	Through Hole	2.54 mm	0.1 in	Board to Cable/Wire	20	Shrouded - 4 Wall	Flash	Gold	UL94 V-0	17 mm	0.669 "	Solder	3 A	Male Pin	250 VAC	Polybutylene Terephthalate (PBT)	Brass			0.134 in	3.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.13
		10	$ 0.98
		80	$ 0.88
		648	$ 0.74
