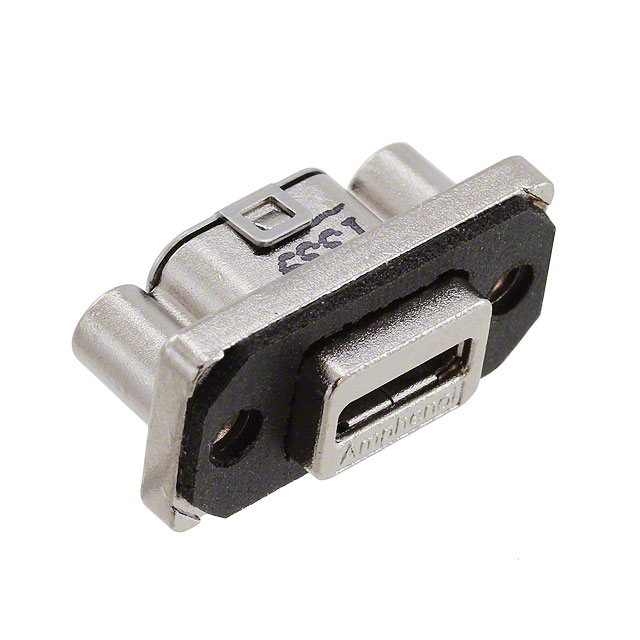

MUSBK15230

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB2.0 MICRO AB PCB RA

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB2.0 MICRO AB PCB RA

Technical Specifications

Parameters and characteristics for this part

Specification	MUSBK15230

Connector Type	USB - micro AB
Contact Finish	Gold
Current Rating (Amps)	0.5 A, 1 A
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Gray
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Flange, Horizontal
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

Part	Shell/Shielding Material	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Contacts	Number of Ports	Mating Cycles	Mounting Feature	Shielding	Gender	Insulation Color	Ingress Protection	Termination	Specifications	Contact Finish	Current Rating (Amps)
Amphenol ICC (Commercial Products) MUSB-K552-30	Stainless Steel	USB - micro AB	UL94 V-0	-40 °C	105 ░C	Panel Mount Through Hole	5	1	10000	Flange Horizontal	Shielded	Receptacle	Gray	IP67 - Dust Tight Waterproof	Solder	USB 2.0	Gold	0.5 A 1 A
Amphenol ICC (Commercial Products) MUSBK15230	Stainless Steel	USB - micro AB	UL94 V-0	-40 °C	105 ░C	Panel Mount Right Angle Through Hole	5	1	10000	Flange Horizontal	Shielded	Receptacle	Gray	IP67 - Dust Tight Waterproof	Solder	USB 2.0	Gold	0.5 A 1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro AB USB 2.0 Receptacle Connector 5 Position Panel Mount, Through Hole, Right Angle
