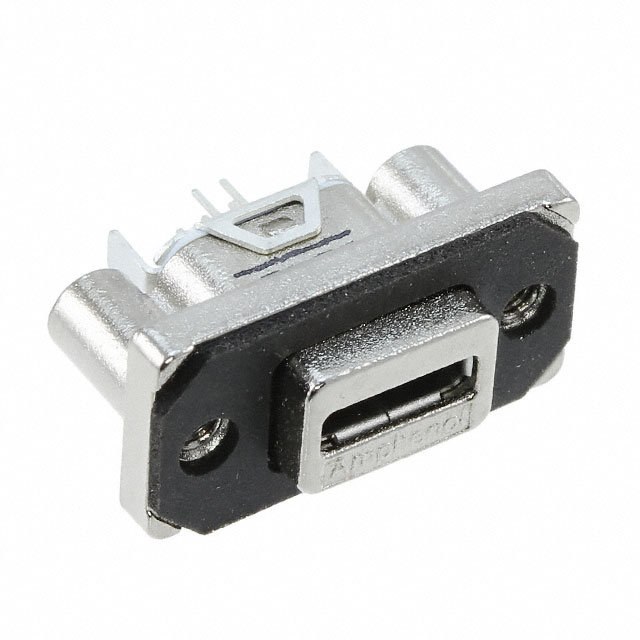

MUSB-K552-30
ActiveAmphenol ICC (Commercial Products)
CONN RCP USB2.0 MICRO AB PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MUSB-K552-30
ActiveAmphenol ICC (Commercial Products)
CONN RCP USB2.0 MICRO AB PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MUSB-K552-30 |
|---|---|
| Connector Type | USB - micro AB |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A, 1 A |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Gray |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Panel Mount |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.85 | |
| 10 | $ 9.87 | |||
| 25 | $ 8.92 | |||
| 50 | $ 8.28 | |||
| 100 | $ 7.70 | |||
| 250 | $ 7.01 | |||
| 500 | $ 6.55 | |||
| 1000 | $ 6.13 | |||
Description
General part information
MUSBK Series
USB - micro AB USB 2.0 Receptacle Connector 5 Position Panel Mount, Through Hole
