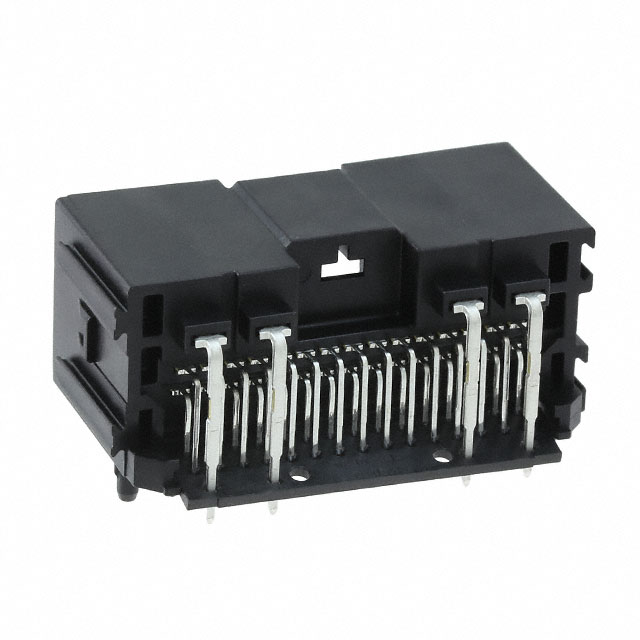

0349618340

Obsolete

Molex

CONN HEADER R/A 34POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0349618340

Obsolete

Molex

CONN HEADER R/A 34POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349618340

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.108 in
Contact Length - Post	2.75 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	0.654 in
Insulation Height	16.61 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	3
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034961 Series

Part	Contact Shape	Mounting Type	Contact Type	Fastening Type	Number of Rows	Termination	Applications	Contact Length - Post	Contact Length - Post	Connector Type	Contact Material	Insulation Color	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Positions	Features	Style	Contact Finish - Post	Shrouding	Material Flammability Rating
Molex 0349617384
Molex 0349610382	Rectangular	Through Hole Right Angle	Male Blade	Latch Lock	3	Solder	Automotive	0.108 in	2.75 mm	Header	Copper Alloy	Gray	0.654 in	16.61 mm	All	38	Board Guide	Board to Cable/Wire	Tin	Shrouded - 4 Wall
Molex 0349611340	Rectangular	Through Hole Right Angle	Male Blade	Latch Lock	3	Solder	Automotive	0.108 in	2.75 mm	Header	Copper Alloy	Black	0.654 in	16.61 mm	All	34	Board Guide	Board to Cable/Wire	Tin	Shrouded - 4 Wall
Molex 0349619340	Rectangular	Through Hole Right Angle	Male Blade	Latch Lock	3	Solder	Automotive	0.108 in	2.75 mm	Header	Copper Alloy	Black	0.653 in	16.59 mm	All	34	Board Guide	Board to Cable/Wire	Tin	Shrouded - 4 Wall
Molex 0349611343
Molex 0349618340	Rectangular	Through Hole Right Angle	Male Blade	Latch Lock	3	Solder	Automotive	0.108 in	2.75 mm	Header	Copper Alloy	Black	0.654 in	16.61 mm	All	34	Board Guide	Board to Cable/Wire	Tin	Shrouded - 4 Wall	UL94 V-0
Molex 0349617340	Rectangular	Through Hole Right Angle	Male Blade	Latch Lock	3	Solder	Automotive	0.108 in	2.75 mm	Header	Copper Alloy	Black	0.654 in	16.61 mm	All	34	Board Guide	Board to Cable/Wire	Tin	Shrouded - 4 Wall
Molex 0349617342	Rectangular	Through Hole Right Angle	Male Blade	Latch Lock	3	Solder	Automotive	0.108 in	2.75 mm	Header	Copper Alloy	Gray	0.654 in	16.61 mm	All	34	Board Guide	Board to Cable/Wire	Tin	Shrouded - 4 Wall
Molex 0349610381	Rectangular	Through Hole Right Angle	Male Blade	Latch Lock	3	Solder	Automotive	0.108 in	2.75 mm	Header	Copper Alloy	Gray	0.654 in	16.61 mm	All	38	Board Guide	Board to Cable/Wire	Tin	Shrouded - 4 Wall
Molex 0349610385

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

034961 Series

Connector Header Through Hole, Right Angle 34 position
