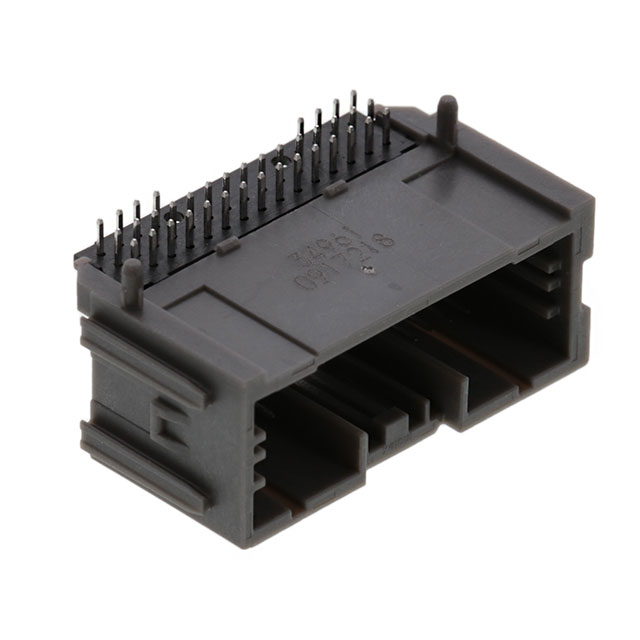

0349610382
ObsoleteMolex
CONN SHROUDED HEADER (4 SIDES) HDR 38 POS 2MM SOLDER RA SIDE ENTRY THRU-HOLE MINI 50 TRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0349610382
ObsoleteMolex
CONN SHROUDED HEADER (4 SIDES) HDR 38 POS 2MM SOLDER RA SIDE ENTRY THRU-HOLE MINI 50 TRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0349610382 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.108 in |
| Contact Length - Post | 2.75 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height | 0.654 in |
| Insulation Height | 16.61 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 38 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 1.91 | |
| 10 | $ 1.80 | |||
| 25 | $ 1.75 | |||
| 100 | $ 1.72 | |||
Description
General part information
034961 Series
Connector Header Through Hole, Right Angle 38 position
