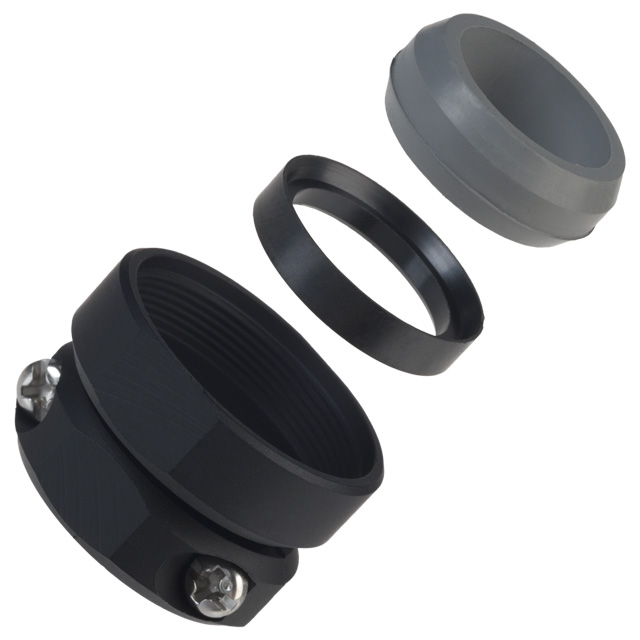

JR21WCC-16(71)
ObsoleteHirose Electric USA, Inc.
CONN CABLE CLAMP SZ21 BLACK M24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JR21WCC-16(71)
ObsoleteHirose Electric USA, Inc.
CONN CABLE CLAMP SZ21 BLACK M24
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JR21WCC-16(71) |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 0.63 in |
| Cable Opening [custom] | 16 mm |
| Color | Black |
| Diameter - Outside [diameter] | 1.062 " |
| Diameter - Outside [diameter] | 26.97 mm |
| Features | Clamp Screws, Washer, Gasket |
| For Use With/Related Products | JR-W Series Plug |
| Includes | 2 Screws, 1 Gasket, 1 Cable Clamp, 1 Washer |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material | Brass, Zinc Alloy, Aluminum Alloy |
| Plating | Chrome |
| Shell Size - Insert | 21 |
| Thread Size | M24x0.75 |
| Type | Cable Clamp |
JR21WCC Series
| Part | Cable Exit | Material | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Color | Features | Ingress Protection | Plating | Includes | Thread Size | Shell Size - Insert | Type | Cable Opening [diameter] | Cable Opening [diameter] | For Use With/Related Products | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 180 ° | Aluminum Alloy Brass Zinc Alloy | 1.062 " | 26.97 mm | Black | Clamp Screws Gasket Washer | IP67 - Dust Tight Waterproof | Chrome | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | M24x0.75 | 21 | Cable Clamp | 8 mm | 0.315 in | JR-W Series Plug | ||
Hirose Electric USA, Inc. | 180 ° | Aluminum Alloy Brass Zinc Alloy | 1.062 " | 26.97 mm | Black | Clamp Screws Gasket Washer | IP67 - Dust Tight Waterproof | Chrome | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | M24x0.75 | 21 | Cable Clamp | 12 mm | 0.472 in | JR-W Series Plug | ||
Hirose Electric USA, Inc. | 180 ° | Aluminum Alloy Brass Zinc Alloy | 1.062 " | 26.97 mm | Black | Clamp Screws Gasket Washer | IP67 - Dust Tight Waterproof | Chrome | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | M24x0.75 | 21 | Cable Clamp | JR-W Series Plug | 14 mm | 0.551 in | ||
Hirose Electric USA, Inc. | 180 ° | Aluminum Alloy Brass Zinc Alloy | 1.062 " | 26.97 mm | Black | Clamp Screws Gasket Washer | IP67 - Dust Tight Waterproof | Chrome | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | M24x0.75 | 21 | Cable Clamp | JR-W Series Plug | 16 mm | 0.63 in | ||
Hirose Electric USA, Inc. | 180 ° | Aluminum Alloy Brass Zinc Alloy | 1.062 " | 26.97 mm | Black | Clamp Screws Gasket Washer | IP67 - Dust Tight Waterproof | Chrome | 1 Cable Clamp 1 Gasket 1 Washer 2 Screws | M24x0.75 | 21 | Cable Clamp | 12 mm | 0.472 in | JR-W Series Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JR21WCC Series
Black Connector Cable Clamp M24x0.75 21
