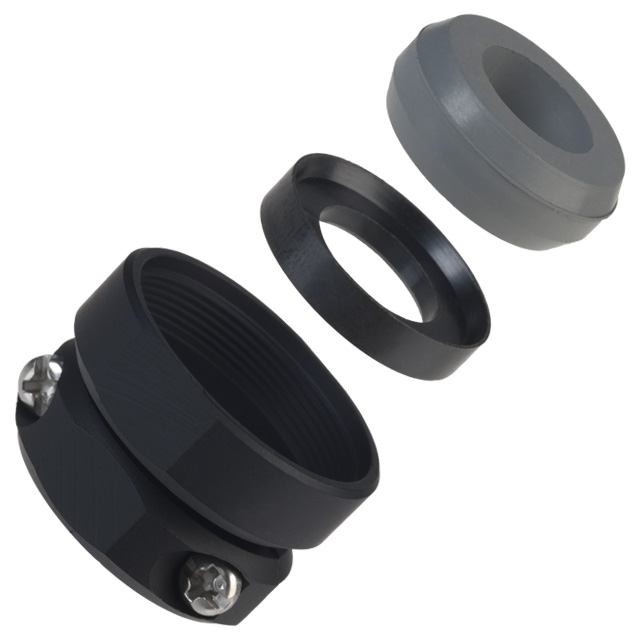

JR21WCC-12

Obsolete

Hirose Electric USA, Inc.

CONN CABLE CLAMP SZ21 BLACK M24

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JR21WCC-12

Obsolete

Hirose Electric USA, Inc.

CONN CABLE CLAMP SZ21 BLACK M24

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR21WCC-12

Cable Exit	180 °
Cable Opening [diameter]	12 mm
Cable Opening [diameter]	0.472 in
Color	Black
Diameter - Outside [diameter]	1.062 "
Diameter - Outside [diameter]	26.97 mm
Features	Clamp Screws, Washer, Gasket
For Use With/Related Products	JR-W Series Plug
Includes	2 Screws, 1 Gasket, 1 Cable Clamp, 1 Washer
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Brass, Zinc Alloy, Aluminum Alloy
Plating	Chrome
Shell Size - Insert	21
Thread Size	M24x0.75
Type	Cable Clamp

JR21WCC Series

Part	Cable Exit	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Features	Ingress Protection	Plating	Includes	Thread Size	Shell Size - Insert	Type	Cable Opening [diameter]	Cable Opening [diameter]	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]
Hirose Electric USA, Inc. JR21WCC-8(71)	180 °	Aluminum Alloy Brass Zinc Alloy	1.062 "	26.97 mm	Black	Clamp Screws Gasket Washer	IP67 - Dust Tight Waterproof	Chrome	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	M24x0.75	21	Cable Clamp	8 mm	0.315 in	JR-W Series Plug
Hirose Electric USA, Inc. JR21WCC-12	180 °	Aluminum Alloy Brass Zinc Alloy	1.062 "	26.97 mm	Black	Clamp Screws Gasket Washer	IP67 - Dust Tight Waterproof	Chrome	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	M24x0.75	21	Cable Clamp	12 mm	0.472 in	JR-W Series Plug
Hirose Electric USA, Inc. JR21WCC-14(71)	180 °	Aluminum Alloy Brass Zinc Alloy	1.062 "	26.97 mm	Black	Clamp Screws Gasket Washer	IP67 - Dust Tight Waterproof	Chrome	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	M24x0.75	21	Cable Clamp			JR-W Series Plug	14 mm	0.551 in
Hirose Electric USA, Inc. JR21WCC-16(71)	180 °	Aluminum Alloy Brass Zinc Alloy	1.062 "	26.97 mm	Black	Clamp Screws Gasket Washer	IP67 - Dust Tight Waterproof	Chrome	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	M24x0.75	21	Cable Clamp			JR-W Series Plug	16 mm	0.63 in
Hirose Electric USA, Inc. JR21WCC-12(71)	180 °	Aluminum Alloy Brass Zinc Alloy	1.062 "	26.97 mm	Black	Clamp Screws Gasket Washer	IP67 - Dust Tight Waterproof	Chrome	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	M24x0.75	21	Cable Clamp	12 mm	0.472 in	JR-W Series Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

JR21WCC Series

Black Connector Cable Clamp M24x0.75 21
