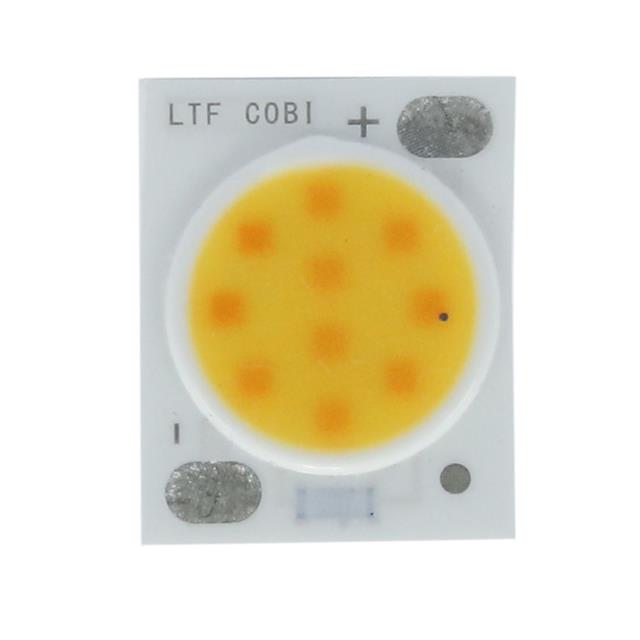

QLUXCOBI181893016KWD

Active

LTF technology LLC

LED COB QLUX NEUT WHT SQU 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QLUXCOBI181893016KWD

Active

LTF technology LLC

LED COB QLUX NEUT WHT SQU 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QLUXCOBI181893016KWD

CCT (K) [Max]	3000 K
CCT (K) [Min]	1800 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	700 mA
Features	Dimming
Height [z]	1 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	90 lm/W
Luminous Flux @ Current/Temperature	2170 lm
Size / Dimension [x]	18 mm
Size / Dimension [y]	18 mm
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	34 V

QLUX Series

Part	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [diameter]	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature	Features	Type	Lumens/Watt @ Current - Test	Viewing Angle	Current - Max [Max]	Current - Test	Height [z]	Size / Dimension [y]	Size / Dimension [x]	CCT (K) [Max]	CCT (K) [Min]	Temperature - Test
LTF technology LLC QLUXDOBAR30045W12930	94	3000 K	300 mm	Flat	Round	120 VAC	Neutral White	4174 lm	Dimming-ELV Triac	LED Engine	90 lm/W	160 °
LTF technology LLC QLUX10W350C28V27K9CR	90	2700 K		Flat	Rectangle		Neutral White	822 lm	With Connector	LED Engine	83 lm/W	160 °	350 mA	350 mA	3.5 mm	41.95 mm	83.9 mm
LTF technology LLC QLUXCOBI1512932WD-P1	98			Flat	Rectangle	34 V	Neutral White	1200 lm	Dimming	Chip On Board (COB)	82 lm/W		350 mA	350 mA	1.5 mm	12 mm	15 mm	3000 K	1800 K
LTF technology LLC QLUXL57512W24LED840L	80	4000 K		Flat	Linear		Neutral White	1250 lm	Dimming	LED Engine	152 lm/W	120 °		350 mA		25.4 mm	575 mm			50 °C
LTF technology LLC QLUXDOBAL29205W56927	92	2700 K		Flat	Linear	120 VAC	Neutral White	450 lm	Dimming-ELV Triac	LED Engine	93 lm/W	160 °				38 mm	292 mm
LTF technology LLC QLUXDOBAR22830W11927	90	2700 K	228 mm	Flat	Round	120 VAC	Neutral White		Dimming-ELV Triac	LED Engine	80 lm/W	160 °
LTF technology LLC QLUXDOBAR22830W11930	90	3000 K	228 mm	Flat	Round	120 VAC	Neutral White	2600 lm	Dimming-ELV Triac	LED Engine	80 lm/W	160 °
LTF technology LLC QLUXCOBI181893016KWD	95			Flat	Square	34 V	Neutral White	2170 lm	Dimming	Chip On Board (COB)	90 lm/W		700 mA		1 mm	18 mm	18 mm	3000 K	1800 K
LTF technology LLC QLUXDOBAL29205W56930	92	3000 K		Flat	Linear	120 VAC	Neutral White	500 lm	Dimming-ELV Triac	LED Engine	93 lm/W	160 °				38 mm	292 mm
LTF technology LLC QLUXDOBAL29620W84LED940K	94	4000 K		Flat	Linear	120 VAC	Neutral White	2028 lm	Dimming-ELV Triac	LED Engine	90 lm/W	160 °				45 mm	296 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.82
		10	$ 6.43
		50	$ 6.19
		100	$ 5.94
		500	$ 5.26
		1000	$ 4.58

Description

General part information

QLUX Series

LED Lighting COBs Engines Modules Chip On Board (COB) QLUX White, Neutral Square
