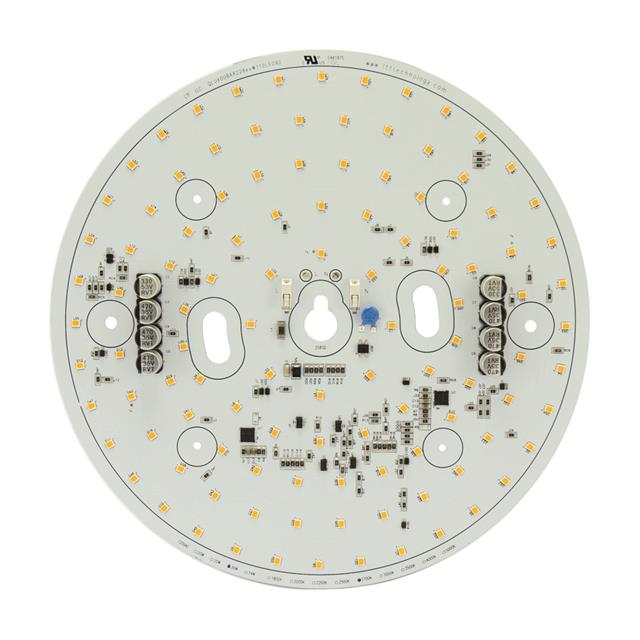

QLUXDOBAR22830W11927

Active

LTF technology LLC

LED ENG QLUX NEUT WHT RND 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QLUXDOBAR22830W11927

Active

LTF technology LLC

LED ENG QLUX NEUT WHT RND 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QLUXDOBAR22830W11927

CCT (K)	2700 K
Color	Neutral, White
Configuration	Round
CRI (Color Rendering Index)	90
Features	Dimming-ELV, Triac
Lens Type	Flat
Lumens/Watt @ Current - Test	80 lm/W
Size / Dimension [diameter]	228 mm
Type	LED Engine
Viewing Angle	160 °
Voltage - Forward (Vf) (Typ)	120 VAC

QLUX Series

Part	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [diameter]	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature	Features	Type	Lumens/Watt @ Current - Test	Viewing Angle	Current - Max [Max]	Current - Test	Height [z]	Size / Dimension [y]	Size / Dimension [x]	CCT (K) [Max]	CCT (K) [Min]	Temperature - Test
LTF technology LLC QLUXDOBAR30045W12930	94	3000 K	300 mm	Flat	Round	120 VAC	Neutral White	4174 lm	Dimming-ELV Triac	LED Engine	90 lm/W	160 °
LTF technology LLC QLUX10W350C28V27K9CR	90	2700 K		Flat	Rectangle		Neutral White	822 lm	With Connector	LED Engine	83 lm/W	160 °	350 mA	350 mA	3.5 mm	41.95 mm	83.9 mm
LTF technology LLC QLUXCOBI1512932WD-P1	98			Flat	Rectangle	34 V	Neutral White	1200 lm	Dimming	Chip On Board (COB)	82 lm/W		350 mA	350 mA	1.5 mm	12 mm	15 mm	3000 K	1800 K
LTF technology LLC QLUXL57512W24LED840L	80	4000 K		Flat	Linear		Neutral White	1250 lm	Dimming	LED Engine	152 lm/W	120 °		350 mA		25.4 mm	575 mm			50 °C
LTF technology LLC QLUXDOBAL29205W56927	92	2700 K		Flat	Linear	120 VAC	Neutral White	450 lm	Dimming-ELV Triac	LED Engine	93 lm/W	160 °				38 mm	292 mm
LTF technology LLC QLUXDOBAR22830W11927	90	2700 K	228 mm	Flat	Round	120 VAC	Neutral White		Dimming-ELV Triac	LED Engine	80 lm/W	160 °
LTF technology LLC QLUXDOBAR22830W11930	90	3000 K	228 mm	Flat	Round	120 VAC	Neutral White	2600 lm	Dimming-ELV Triac	LED Engine	80 lm/W	160 °
LTF technology LLC QLUXCOBI181893016KWD	95			Flat	Square	34 V	Neutral White	2170 lm	Dimming	Chip On Board (COB)	90 lm/W		700 mA		1 mm	18 mm	18 mm	3000 K	1800 K
LTF technology LLC QLUXDOBAL29205W56930	92	3000 K		Flat	Linear	120 VAC	Neutral White	500 lm	Dimming-ELV Triac	LED Engine	93 lm/W	160 °				38 mm	292 mm
LTF technology LLC QLUXDOBAL29620W84LED940K	94	4000 K		Flat	Linear	120 VAC	Neutral White	2028 lm	Dimming-ELV Triac	LED Engine	90 lm/W	160 °				45 mm	296 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 25.37
		10	$ 24.38
		50	$ 23.88
		100	$ 23.39
		500	$ 21.60
		1000	$ 19.72

Description

General part information

QLUX Series

LED Lighting COBs Engines Modules LED Engine QLUX White, Neutral Round

Documents

Technical documentation and resources
