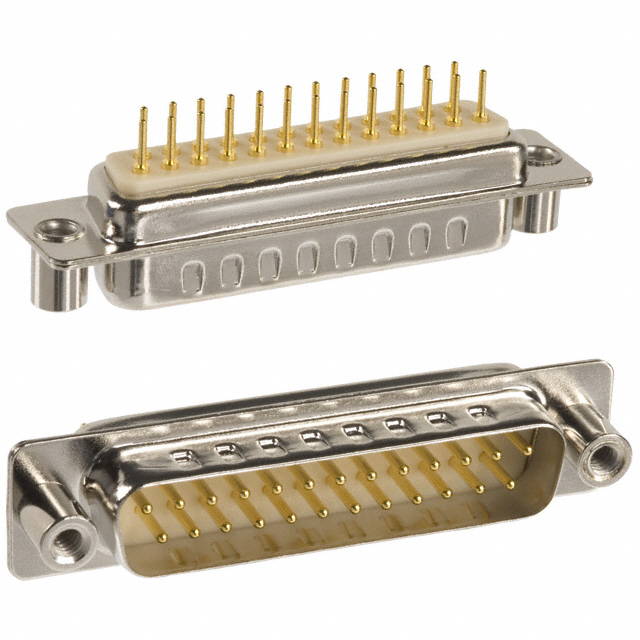

D SUB CONNECTOR, DB25, PLUG, 172-E M SERIES, 25 CONTACTS, DB, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
172-E25-113R031
ActiveMH Connectors
D SUB CONNECTOR, DB25, PLUG, 172-E M SERIES, 25 CONTACTS, DB, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 172-E25-113R031 |
|---|---|
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
172-E25 Series
| Part | Flange Feature | Connector Style | Contact Material | Material Flammability Rating | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Contact Finish Thickness | Color | Contact Type | Number of Rows | Dielectric Material | Current Rating (Amps) | Features | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Mounting Type | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 4-40 | D-Sub | Brass | UL94 V-0 | 20 AWG | 26 AWG | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Grounding Indents | Male Pins Plug | B DB | 3 | |||
MH Connectors | 4-40 | D-Sub | Brass | UL94 V-0 | 20 AWG | 26 AWG | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Receptacle Female Sockets | B DB | 3 | ||||
MH Connectors | 4-40 Board Side | D-Sub | UL94 V-0 | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | Grounding Indents | Male Pins Plug | B DB | 3 | Solder | Panel Mount Through Hole | ||||
MH Connectors | Cable Side | D-Sub | Brass | UL94 V-0 | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Grounding Indents | Male Pins Plug | B DB | 3 | |||||
MH Connectors | Cable Side | D-Sub | Brass | UL94 V-0 | 20 AWG | 26 AWG | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Grounding Indents | Male Pins Plug | B DB | 3 | |||
MH Connectors | Housing/Shell (Unthreaded) | D-Sub | Brass | UL94 V-0 | 20 AWG | 26 AWG | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Grounding Indents | Male Pins Plug | B DB | 3 | |||
MH Connectors | 4-40 | D-Sub | Brass | UL94 V-0 | 20 AWG | 26 AWG | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Receptacle Female Sockets | B DB | 3 | Nickel Plated Steel | |||
MH Connectors | 4-40 | D-Sub | Brass | UL94 V-0 | Gold | Flash | White | Signal | 2 | Polyamide (PA6T) Nylon 6T | 5 A | Grounding Indents | Male Pins Plug | B DB | 3 | Solder | Panel Mount Through Hole | Nickel Plated Steel | ||
MH Connectors | Cable Side | D-Sub | Brass | UL94 V-0 | 20 AWG | 26 AWG | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Receptacle Female Sockets | B DB | 3 | ||||
MH Connectors | Housing/Shell (Unthreaded) | D-Sub | Brass | UL94 V-0 | 20 AWG | 26 AWG | Gold | Flash | White | Signal | 2 | Polybutylene Terephthalate (PBT) | 5 A | Grounding Indents | Male Pins Plug | B DB | 3 | Nickel Plated Steel |
