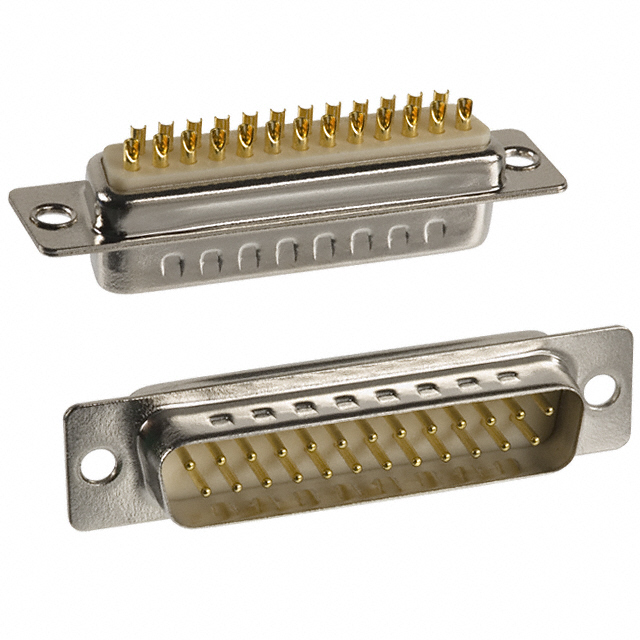

172-E25-103R001

Active

MH Connectors

CONN D-SUB PLUG 25POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet

172-E25-103R001

Active

MH Connectors

CONN D-SUB PLUG 25POS PNL MNT

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-E25-103R001

Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG

172-E25 Series

Part	Flange Feature	Connector Style	Contact Material	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Contact Finish Thickness	Color	Contact Type	Number of Rows	Dielectric Material	Current Rating (Amps)	Features	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Mounting Type	Shell Material, Finish
MH Connectors 172-E25-102R031	4-40	D-Sub	Brass	UL94 V-0	20 AWG	26 AWG	Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A	Grounding Indents	Male Pins Plug	B DB	3
MH Connectors 172-E25-202R031	4-40	D-Sub	Brass	UL94 V-0	20 AWG	26 AWG	Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A		Receptacle Female Sockets	B DB	3
MH Connectors 172-E25-112-011	4-40 Board Side	D-Sub		UL94 V-0			Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT) Glass Filled	5 A	Grounding Indents	Male Pins Plug	B DB	3	Solder	Panel Mount Through Hole
MH Connectors 172-E25-102-011	Cable Side	D-Sub	Brass	UL94 V-0			Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A	Grounding Indents	Male Pins Plug	B DB	3
MH Connectors 172-E25-102R011	Cable Side	D-Sub	Brass	UL94 V-0	20 AWG	26 AWG	Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A	Grounding Indents	Male Pins Plug	B DB	3
MH Connectors 172-E25-102R001	Housing/Shell (Unthreaded)	D-Sub	Brass	UL94 V-0	20 AWG	26 AWG	Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A	Grounding Indents	Male Pins Plug	B DB	3
MH Connectors 172-E25-203R031	4-40	D-Sub	Brass	UL94 V-0	20 AWG	26 AWG	Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A		Receptacle Female Sockets	B DB	3			Nickel Plated Steel
MH Connectors 172-E25-113R031	4-40	D-Sub	Brass	UL94 V-0			Gold	Flash	White	Signal	2	Polyamide (PA6T) Nylon 6T	5 A	Grounding Indents	Male Pins Plug	B DB	3	Solder	Panel Mount Through Hole	Nickel Plated Steel
MH Connectors 172-E25-202R021	Cable Side	D-Sub	Brass	UL94 V-0	20 AWG	26 AWG	Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A		Receptacle Female Sockets	B DB	3
MH Connectors 172-E25-103R001	Housing/Shell (Unthreaded)	D-Sub	Brass	UL94 V-0	20 AWG	26 AWG	Gold	Flash	White	Signal	2	Polybutylene Terephthalate (PBT)	5 A	Grounding Indents	Male Pins Plug	B DB	3			Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.77
		10	$ 5.18
		25	$ 4.68
		40	$ 4.44
		80	$ 4.12
		230	$ 3.68
		440	$ 3.45
		945	$ 3.20
		2400	$ 2.93

Description

General part information

172-E25 Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Backshell Reference Guide

Datasheet
