M1DXA-5036J

Active

3M (TC)

IDC CABLE - MKR50A/MC50G/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet 891 Series Datasheet +3

M1DXA-5036J

Active

3M (TC)

IDC CABLE - MKR50A/MC50G/X

Deep-Dive with AI

Documents3365 Series Datasheet 891 Series Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1DXA-5036J

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1DXA Series

Part	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Contact Finish	Shielding	Color	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Cable Termination	Features
3M (TC) M1DXA-2436R	2	0.1 in	2.54 mm	24	Gold	Unshielded	Multiple Ribbon	0.05 "	1.27 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-3440K	2	0.1 in	2.54 mm	34	Gold	Unshielded	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	3.34 ft	1.02 m	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-3436J	2	0.1 in	2.54 mm	34	Gold	Unshielded		0.05 "	1.27 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-3036R	2	0.1 in	2.54 mm	30	Gold	Unshielded	Multiple Ribbon	0.05 "	1.27 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-5036J	2	0.1 in	2.54 mm	50	Gold	Unshielded		0.05 "	1.27 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-5036R	2	0.1 in	2.54 mm	50	Gold	Unshielded	Multiple Ribbon	0.05 "	1.27 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-6040K	2	0.1 in	2.54 mm	60	Gold	Unshielded	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	3.34 ft	1.02 m	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-1440K	2	0.1 in	2.54 mm	14	Gold	Unshielded	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	3.34 ft	1.02 m	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-1036R	2	0.1 in	2.54 mm	10	Gold	Unshielded	Multiple Ribbon	0.05 "	1.27 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief
3M (TC) M1DXA-2636R	2	0.1 in	2.54 mm	26	Gold	Unshielded	Multiple Ribbon	0.05 "	1.27 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Socket to Cable	IDC	Polarizing Key Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.50
		10	$ 8.93
		25	$ 8.37
		50	$ 7.97
		100	$ 7.59
		250	$ 7.11
		500	$ 6.77
		1000	$ 6.45

Description

General part information

M1DXA Series

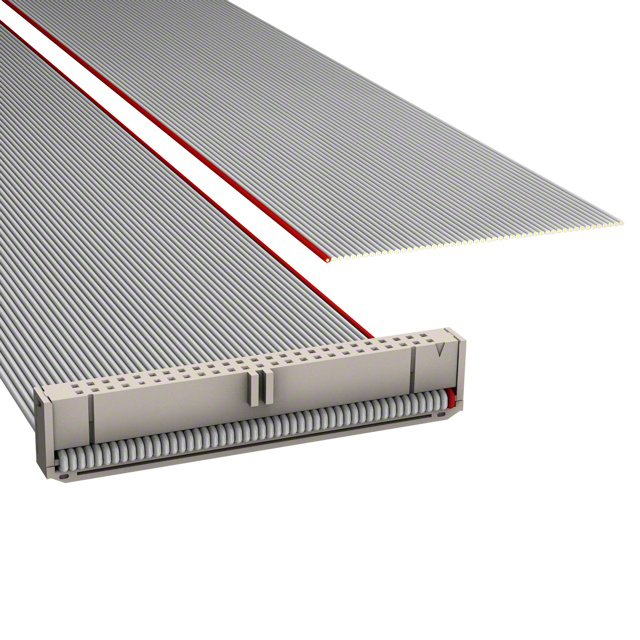

50 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
