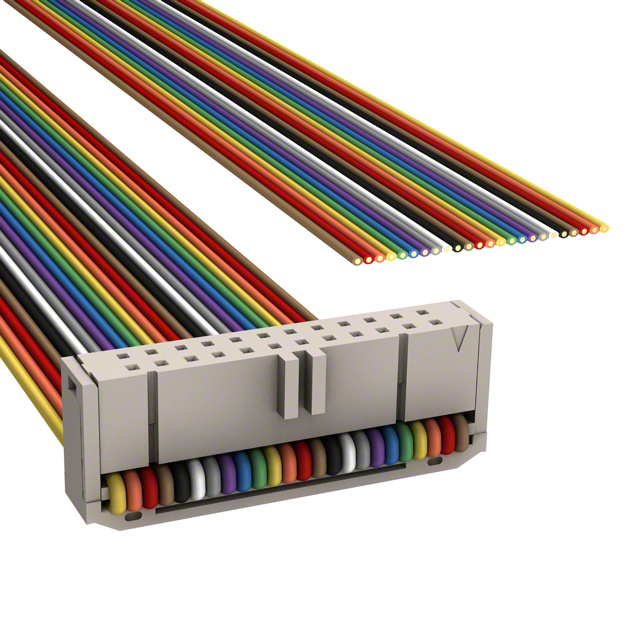

M1DXA-2436R
Active3M (TC)
IDC CABLE - MKR24A/MC24M/X
Deep-Dive with AI
Search across all available documentation for this part.
M1DXA-2436R
Active3M (TC)
IDC CABLE - MKR24A/MC24M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1DXA-2436R |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Polarizing Key, Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M1DXA Series
| Part | Number of Rows | Pitch - Connector | Pitch - Connector | Number of Positions | Contact Finish | Shielding | Color | Pitch - Cable | Pitch - Cable | Length [x] | Length [x] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Cable Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 2 | 0.1 in | 2.54 mm | 24 | Gold | Unshielded | Multiple Ribbon | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
3M (TC) | 2 | 0.1 in | 2.54 mm | 34 | Gold | Unshielded | Multiple Twisted Pair (Flat) | 0.05 " | 1.27 mm | 3.34 ft | 1.02 m | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
3M (TC) | 2 | 0.1 in | 2.54 mm | 34 | Gold | Unshielded | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief | |
3M (TC) | 2 | 0.1 in | 2.54 mm | 30 | Gold | Unshielded | Multiple Ribbon | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
3M (TC) | 2 | 0.1 in | 2.54 mm | 50 | Gold | Unshielded | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief | |
3M (TC) | 2 | 0.1 in | 2.54 mm | 50 | Gold | Unshielded | Multiple Ribbon | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
3M (TC) | 2 | 0.1 in | 2.54 mm | 60 | Gold | Unshielded | Multiple Twisted Pair (Flat) | 0.05 " | 1.27 mm | 3.34 ft | 1.02 m | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
3M (TC) | 2 | 0.1 in | 2.54 mm | 14 | Gold | Unshielded | Multiple Twisted Pair (Flat) | 0.05 " | 1.27 mm | 3.34 ft | 1.02 m | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
3M (TC) | 2 | 0.1 in | 2.54 mm | 10 | Gold | Unshielded | Multiple Ribbon | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
3M (TC) | 2 | 0.1 in | 2.54 mm | 26 | Gold | Unshielded | Multiple Ribbon | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | 0.76 Ám | 30 Áin | Socket to Cable | IDC | Polarizing Key Strain Relief |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.97 | |
| 10 | $ 9.96 | |||
| 25 | $ 9.00 | |||
| 50 | $ 8.35 | |||
| 100 | $ 7.77 | |||
| 250 | $ 7.07 | |||
| 500 | $ 6.60 | |||
| 1000 | $ 6.18 | |||
Description
General part information
M1DXA Series
24 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
Documents
Technical documentation and resources
