01K108-S00D3

Active

Rosenberger

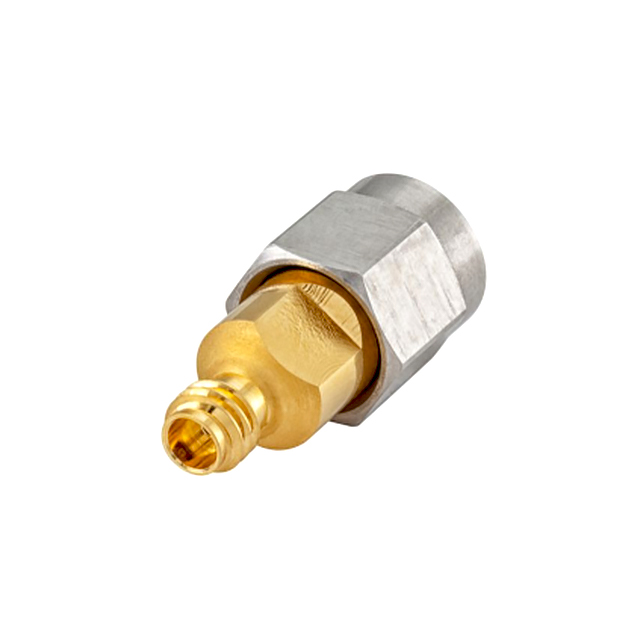

ADAPT 1.00MM JACK - 1.85MM PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT 1.00MM JACK - 1.85MM PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	01K108-S00D3

Adapter Series [Max]	RPC-1.85
Adapter Series [Min]	RPC-1.00
Adapter Type	Plug to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	1 mm
Convert From (Adapter End)	Female Socket
Convert To (Adapter End)	1.85mm Plug, Male Pin
Dielectric Material	Polyetheretherketone (PEEK)
Frequency - Max [Max]	70 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Dielectric Material	Mounting Type	Center Gender	Style	Adapter Type	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Body Finish	Frequency - Max [Max]	Center Contact Material	Conversion Type	Mating Cycles	Convert From (Adapter End)	Convert From (Adapter End)	Adapter Series [Min]	Adapter Series [Max]	Body Material	Impedance
Rosenberger 01K108-K00D3	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Female to Female	Straight	Jack to Jack	1.85mm Jack Female Socket	85 °C	-40 °C	Gold	Gold	70 GHz	Beryllium Copper	Between Series	500	1 mm	Female Socket	RPC-1.00	RPC-1.85	Beryllium Copper
Rosenberger 01K108-S00D3	Polyetheretherketone (PEEK)	Free Hanging (In-Line)		Straight	Plug to Jack	1.85mm Plug Male Pin	85 °C	-40 °C	Gold	Gold; Passivated	70 GHz	Beryllium Copper	Between Series	500	1 mm	Female Socket	RPC-1.00	RPC-1.85	Beryllium Copper Stainless Steel	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 2325.85

General part information

Adapter Coaxial Connector 1.0mm Jack, Female Socket To 1.85mm Plug, Male Pin 50 Ohms
