01K108-K00D3

Active

Rosenberger

PRECISION 1.00 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 1.00 ADAPTER

Technical Specifications

Parameters and characteristics for this part

Part	Dielectric Material	Mounting Type	Center Gender	Style	Adapter Type	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Body Finish	Frequency - Max [Max]	Center Contact Material	Conversion Type	Mating Cycles	Convert From (Adapter End)	Convert From (Adapter End)	Adapter Series [Min]	Adapter Series [Max]	Body Material	Impedance
Rosenberger 01K108-K00D3	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Female to Female	Straight	Jack to Jack	1.85mm Jack Female Socket	85 °C	-40 °C	Gold	Gold	70 GHz	Beryllium Copper	Between Series	500	1 mm	Female Socket	RPC-1.00	RPC-1.85	Beryllium Copper
Rosenberger 01K108-S00D3	Polyetheretherketone (PEEK)	Free Hanging (In-Line)		Straight	Plug to Jack	1.85mm Plug Male Pin	85 °C	-40 °C	Gold	Gold; Passivated	70 GHz	Beryllium Copper	Between Series	500	1 mm	Female Socket	RPC-1.00	RPC-1.85	Beryllium Copper Stainless Steel	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2325.85

General part information

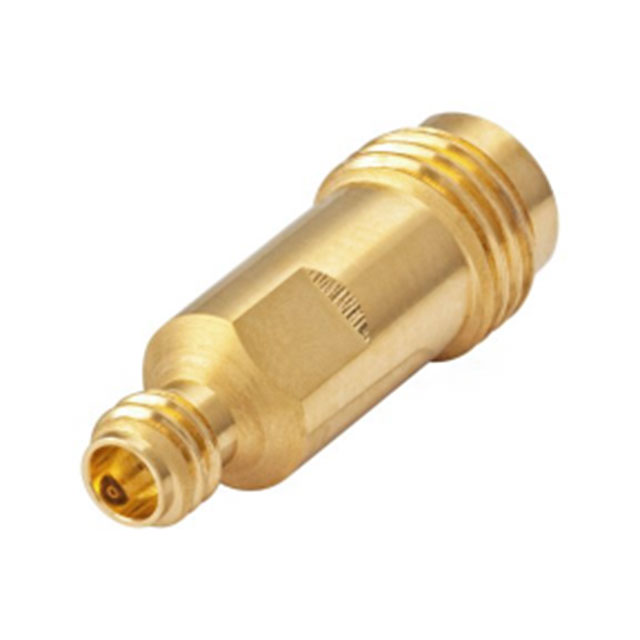

Adapter Coaxial Connector 1.0mm Jack, Female Socket To 1.85mm Jack, Female Socket

Technical documentation and resources
