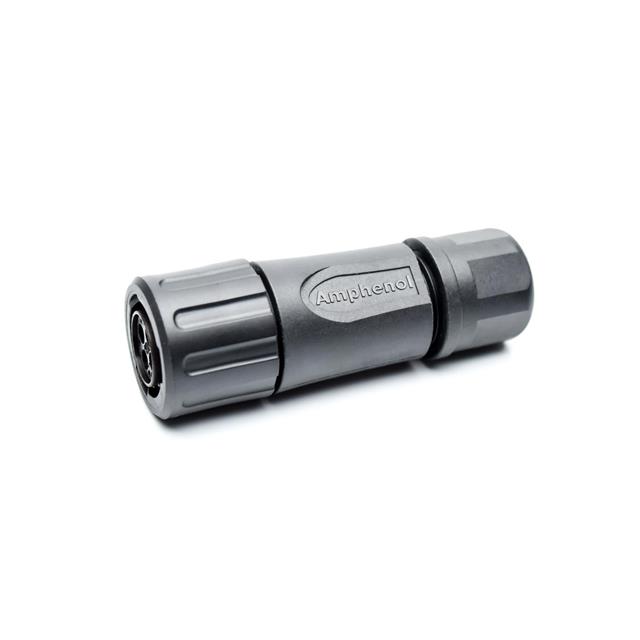

RTS6BS10N3W3S03
ActiveAmphenol Sine Systems Corp
PLUG, 6 (3+3) POSITION, FEMALE,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTS6BS10N3W3S03
ActiveAmphenol Sine Systems Corp
PLUG, 6 (3+3) POSITION, FEMALE,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS6BS10N3W3S03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 20 (3), 16 (3) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 10-3W3 |
| Shielding | Unshielded |
| Type | For Female Sockets |
RTS6BS10 Series
| Part | Includes | Contact Size | Shell Size - Insert | Number of Positions | Material Flammability Rating | Contact Shape | Ingress Protection | Shielding | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Type | Note | Type | Housing Color | Orientation | Connector Type | Fastening Type | Insert Material | Contact Size | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 16 | 10-4 | 4 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||
Amphenol Sine Systems Corp | 16 | 10-3 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||||
Amphenol Sine Systems Corp | 16 | 10-3 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||||
Amphenol Sine Systems Corp | 16 | 10-4 | 4 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | |||
Amphenol Sine Systems Corp | 10-3W3 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | 16 (3) 20 (3) | Plastic | ||
Amphenol Sine Systems Corp | 10-3W3 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | 16 (3) 20 (3) | Plastic | ||
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 16 | 10-4 | 4 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 20 | 10-6 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 20 | 10-6 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.94 | |
| 10 | $ 7.62 | |||
| 25 | $ 6.89 | |||
| 50 | $ 6.39 | |||
| 100 | $ 5.93 | |||
| 250 | $ 5.40 | |||
| 500 | $ 5.04 | |||
| 1000 | $ 4.71 | |||
Description
General part information
RTS6BS10 Series
6 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
