RTS6BS10N4PHEC03
ActiveAmphenol Sine Systems Corp

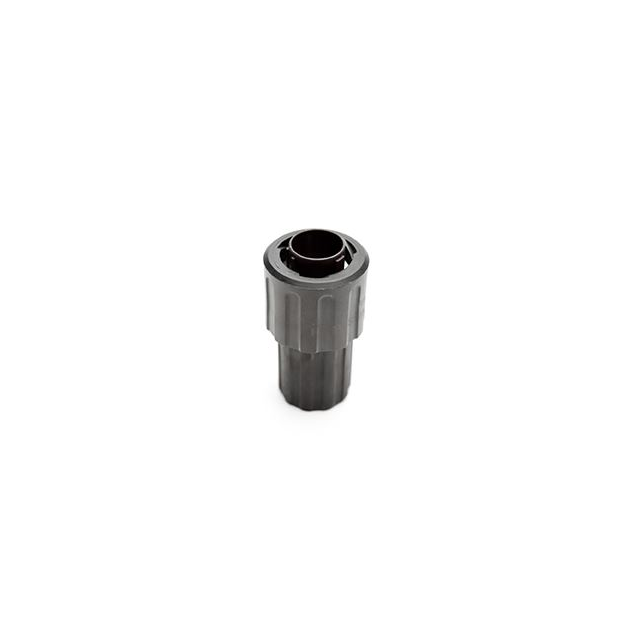

CONN PLG HSG MALE 4POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
RTS6BS10N4PHEC03
ActiveAmphenol Sine Systems Corp
CONN PLG HSG MALE 4POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS6BS10N4PHEC03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Washer, 1 Seal, 1 Connector, 1 Ring, 1 O-Ring, 1 Backshell |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 10-4 |
| Shielding | Unshielded |
| Type | For Male Pins |
RTS6BS10 Series
| Part | Includes | Contact Size | Shell Size - Insert | Number of Positions | Material Flammability Rating | Contact Shape | Ingress Protection | Shielding | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Type | Note | Type | Housing Color | Orientation | Connector Type | Fastening Type | Insert Material | Contact Size | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 16 | 10-4 | 4 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||
Amphenol Sine Systems Corp | 16 | 10-3 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||||
Amphenol Sine Systems Corp | 16 | 10-3 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||||
Amphenol Sine Systems Corp | 16 | 10-4 | 4 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | |||
Amphenol Sine Systems Corp | 10-3W3 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | 16 (3) 20 (3) | Plastic | ||
Amphenol Sine Systems Corp | 10-3W3 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | 16 (3) 20 (3) | Plastic | ||
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 16 | 10-4 | 4 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 20 | 10-6 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Male Pins | Black | N | Plug Housing | Bayonet Lock | Thermoplastic | ||
Amphenol Sine Systems Corp | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 20 | 10-6 | 6 | UL94 V-0 | Circular | IP67 IP69K | Unshielded | Backshell Coupling Nut | 125 °C | -40 °C | Free Hanging (In-Line) | Crimp | Contacts Not Included | For Female Sockets | Black | N | Plug Housing | Bayonet Lock | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.52 | |
| 10 | $ 10.37 | |||
| 25 | $ 9.77 | |||
| 50 | $ 9.52 | |||
| 200 | $ 9.27 | |||
| 400 | $ 8.27 | |||
| 600 | $ 7.76 | |||
| 1000 | $ 6.86 | |||
Description
General part information
RTS6BS10 Series
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
