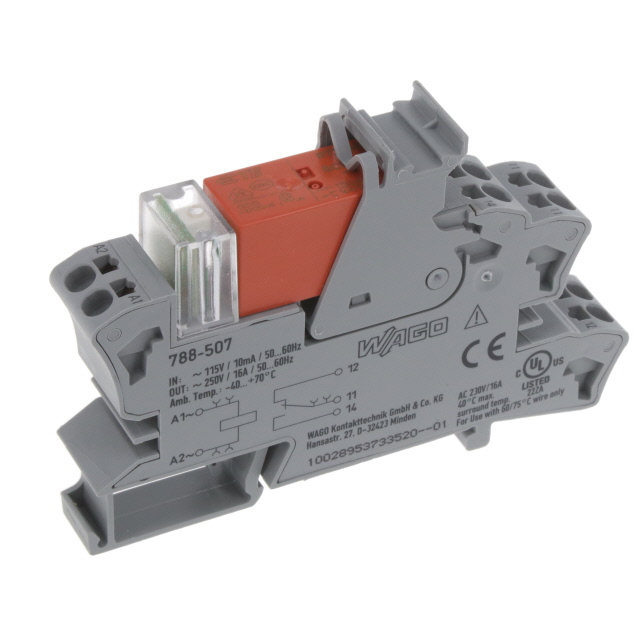

788-507

Active

WAGO Corporation

POWER RELAY, SPDT, 115 VAC, 16 A, 788 SERIES, DIN RAIL, AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

788-507

Active

WAGO Corporation

POWER RELAY, SPDT, 115 VAC, 16 A, 788 SERIES, DIN RAIL, AC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	788-507

Coil Resistance	14.4 kOhms
Coil Type	Non Latching
Coil Voltage	115 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Features	Lighted Indicator
Load - Max Switching	4000 VA
Mounting Type	DIN Rail
Must Operate Voltage	103.5 VAC
Operate Time	10 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	35 ms
Switching Voltage	250 VAC
Termination Style	Spring Terminal

788 Series

Part	Style	Number of Positions	For Use With/Related Products	Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Contact Rating (Current)	Features	Coil Current	Release Time	Coil Resistance	Mounting Type	Contact Material	Coil Voltage	Termination Style	Relay Type	Switching Voltage	Load - Max Switching	Contact Form	Operate Time	Must Operate Voltage
WAGO Corporation 788-117	Flat Pins	8	Terminal Blocks	Terminal Block Cross Connection
WAGO Corporation 788-311					-40 °C	70 °C	Non Latching	8 A	Lighted Indicator	36 mA	13 ms	333.3 Ohms	DIN Rail	Silver Nickel (AgNi)	12 VDC	Spring Terminal	General Purpose	250 VAC	2000 VA	DPDT (2 Form C)	8 ms
WAGO Corporation 788-515					-40 °C	70 °C	Non Latching	8 A	Lighted Indicator		35 ms	14.4 kOhms	DIN Rail	Silver Nickel (AgNi)	115 VAC	Spring Terminal	General Purpose	250 VAC	2000 VA	DPDT (2 Form C)	10 ms	103.5 VAC
WAGO Corporation 788-384					-40 °C	70 °C	Non Latching	6 A	Lighted Indicator	31 mA	4 ms	774.2 Ohms	DIN Rail	Silver Nickel (AgNi)	24 VDC	Spring Terminal	General Purpose	250 VAC	1500 VA	DPDT (2 Form C)	10 ms	20.4 VDC
WAGO Corporation 788-304					-40 °C	70 °C	Non Latching	16 A	Lighted Indicator	19 mA	6 ms	1.3 kOhms	DIN Rail	Silver Nickel (AgNi)	24 VDC	Spring Terminal	General Purpose	250 VAC	4000 VA	SPDT (1 Form C)	8 ms	21.6 VDC
WAGO Corporation 788-507					-40 °C	70 °C	Non Latching	16 A	Lighted Indicator		35 ms	14.4 kOhms	DIN Rail	Silver Nickel (AgNi)	115 VAC	Spring Terminal	General Purpose	250 VAC	4000 VA	SPDT (1 Form C)	10 ms	103.5 VAC
WAGO Corporation 788-312					-40 °C	70 °C	Non Latching	8 A	Lighted Indicator	19 mA	13 ms	1.3 kOhms	DIN Rail	Silver Nickel (AgNi)	24 VDC	Spring Terminal	General Purpose	250 VAC	2000 VA	DPDT (2 Form C)	8 ms	21.6 VDC
WAGO Corporation 788-303					-40 °C	70 °C	Non Latching	16 A	Lighted Indicator	36 mA	6 ms	333.3 Ohms	DIN Rail	Silver Nickel (AgNi)	12 VDC	Spring Terminal	General Purpose	250 VAC	4000 VA	SPDT (1 Form C)	8 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.76
		10	$ 27.32
		25	$ 25.88
		50	$ 24.45
		100	$ 23.01
		250	$ 21.57
Newark	Each	1	$ 34.17
		25	$ 32.41
		100	$ 30.51
		250	$ 28.75
		500	$ 26.69

Description

General part information

788 Series

The 788-507 is a general-purpose Relay Socket with small pluggable miniature switching relay 1CO (SPDT) silver nickel contact and screw terminals. This 788-series DIN-rail mount relay socket features status indication through pluggable LED module (red). Insulated, pluggable jumper system suitable for both coil and load side. Solid wires, fine-stranded wires with crimped ferrules or ultrasonically bonded wire ends can be inserted directly. Quick exchange of the relay and the status indication during maintenance, without having to detach the wiring. Safe electrical isolation in accordance with DIN VDE 0140.
