788-312

Active

WAGO Corporation

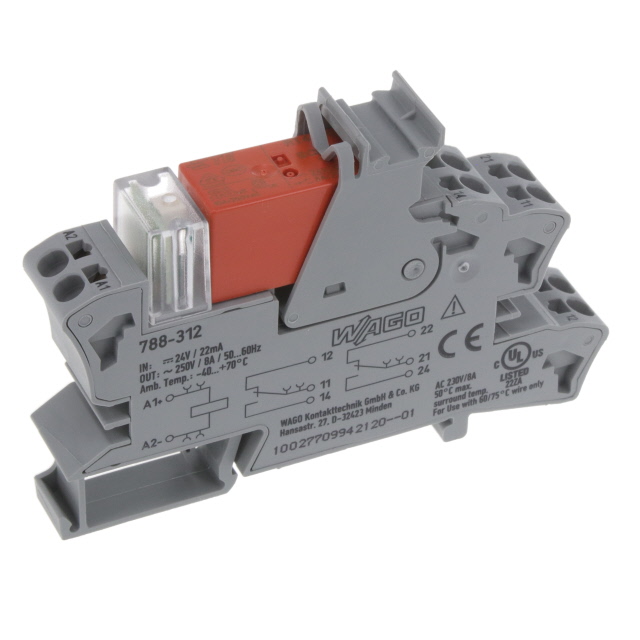

POWER RELAY, DPDT, 24 VDC, 16 A, 788 SERIES, DIN RAIL, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

788-312

Active

WAGO Corporation

POWER RELAY, DPDT, 24 VDC, 16 A, 788 SERIES, DIN RAIL, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	788-312

Coil Current	19 mA
Coil Resistance	1.3 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Features	Lighted Indicator
Load - Max Switching	2000 VA
Mounting Type	DIN Rail
Must Operate Voltage	21.6 VDC
Operate Time	8 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	13 ms
Switching Voltage	250 VAC
Termination Style	Spring Terminal

788 Series

Part	Style	Number of Positions	For Use With/Related Products	Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Contact Rating (Current)	Features	Coil Current	Release Time	Coil Resistance	Mounting Type	Contact Material	Coil Voltage	Termination Style	Relay Type	Switching Voltage	Load - Max Switching	Contact Form	Operate Time	Must Operate Voltage
WAGO Corporation 788-117	Flat Pins	8	Terminal Blocks	Terminal Block Cross Connection
WAGO Corporation 788-311					-40 °C	70 °C	Non Latching	8 A	Lighted Indicator	36 mA	13 ms	333.3 Ohms	DIN Rail	Silver Nickel (AgNi)	12 VDC	Spring Terminal	General Purpose	250 VAC	2000 VA	DPDT (2 Form C)	8 ms
WAGO Corporation 788-515					-40 °C	70 °C	Non Latching	8 A	Lighted Indicator		35 ms	14.4 kOhms	DIN Rail	Silver Nickel (AgNi)	115 VAC	Spring Terminal	General Purpose	250 VAC	2000 VA	DPDT (2 Form C)	10 ms	103.5 VAC
WAGO Corporation 788-384					-40 °C	70 °C	Non Latching	6 A	Lighted Indicator	31 mA	4 ms	774.2 Ohms	DIN Rail	Silver Nickel (AgNi)	24 VDC	Spring Terminal	General Purpose	250 VAC	1500 VA	DPDT (2 Form C)	10 ms	20.4 VDC
WAGO Corporation 788-304					-40 °C	70 °C	Non Latching	16 A	Lighted Indicator	19 mA	6 ms	1.3 kOhms	DIN Rail	Silver Nickel (AgNi)	24 VDC	Spring Terminal	General Purpose	250 VAC	4000 VA	SPDT (1 Form C)	8 ms	21.6 VDC
WAGO Corporation 788-507					-40 °C	70 °C	Non Latching	16 A	Lighted Indicator		35 ms	14.4 kOhms	DIN Rail	Silver Nickel (AgNi)	115 VAC	Spring Terminal	General Purpose	250 VAC	4000 VA	SPDT (1 Form C)	10 ms	103.5 VAC
WAGO Corporation 788-312					-40 °C	70 °C	Non Latching	8 A	Lighted Indicator	19 mA	13 ms	1.3 kOhms	DIN Rail	Silver Nickel (AgNi)	24 VDC	Spring Terminal	General Purpose	250 VAC	2000 VA	DPDT (2 Form C)	8 ms	21.6 VDC
WAGO Corporation 788-303					-40 °C	70 °C	Non Latching	16 A	Lighted Indicator	36 mA	6 ms	333.3 Ohms	DIN Rail	Silver Nickel (AgNi)	12 VDC	Spring Terminal	General Purpose	250 VAC	4000 VA	SPDT (1 Form C)	8 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.16
		10	$ 22.85
		25	$ 21.65
		50	$ 20.79
		100	$ 19.96
		250	$ 18.91
		500	$ 18.16
Newark	Each	1	$ 29.64
		25	$ 28.11
		100	$ 26.46
		250	$ 24.93
		500	$ 23.15

Description

General part information

788 Series

The 788-312 is a Relay Socket with 2-change over small switching relay, 16A contact current rating, 24VDC coil voltage and silver nickel contacts.
