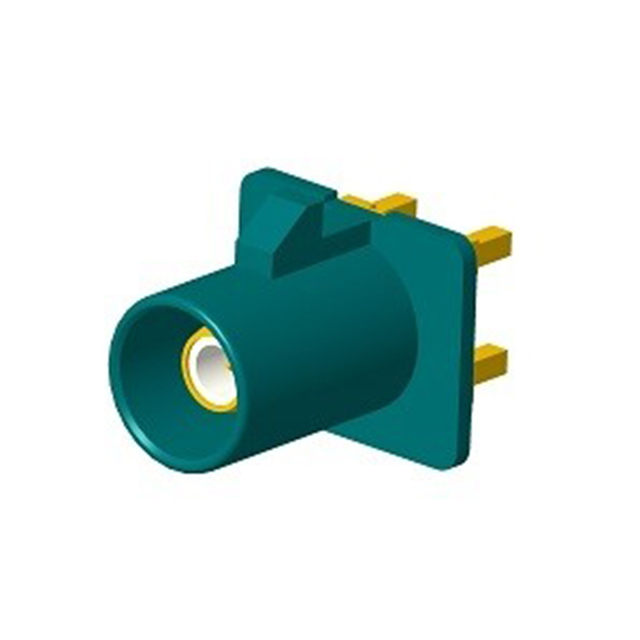

FA1-NZSP-PCB-2

Active

Amphenol RF

CONN FAKRA PLUG 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA PLUG 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NZSP-PCB-2

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code Z
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Impedance	Features	Insertion Loss	Center Contact Plating	Body Finish	Body Material	Frequency - Max [Max]	Center Contact Material	Connector Type	Shield Termination	Mounting Feature	Cable Group	Connector Style	Fastening Type	Includes	Number of Ports	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Mounting Type
Amphenol RF FA1-NZSP-C01-1	50 Ohms	Code Z	0.3 dB	Gold	Nickel	Brass	4 GHz	Brass	Male Pin Plug	Crimp	Flange	188 188A 316 LMR-100 M17/119-RG174 RG-174	Fakra SMB	Locking Ramp	1 Connector 1 Contact 1 Ferrule	1	Crimp	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)
Amphenol RF FA1-NZSP-PCB-1	50 Ohms	Code Z	0.3 dB	Gold	Gold	Brass	4 GHz	Brass	Male Pin Plug	Solder			Fakra SMB	Locking Ramp		1	Solder	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Board Edge Cutout Surface Mount
Amphenol RF FA1-NZSP-C04-0	50 Ohms	Code Z	0.3 dB	Gold	Nickel	Brass	4 GHz	Brass	Male Pin Plug	Crimp	Flange	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Fakra SMB	Locking Ramp	1 Connector 1 Contact 1 Ferrule	1	Crimp	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)
Amphenol RF FA1-NZSP-PCB-0	50 Ohms	Code Z	0.3 dB	Gold	Gold	Brass	4 GHz	Brass	Male Pin Plug	Solder			Fakra SMB	Locking Ramp		1	Solder	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Board Edge Cutout Surface Mount Through Hole Right Angle
Amphenol RF FA1-NZSP-PCB-2	50 Ohms	Code Z		Gold	Gold	Brass	4 GHz	Brass	Male Pin Plug	Solder			Fakra SMB	Locking Ramp		1	Solder	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
