FA1-NZSP-C01-1
ActiveAmphenol RF

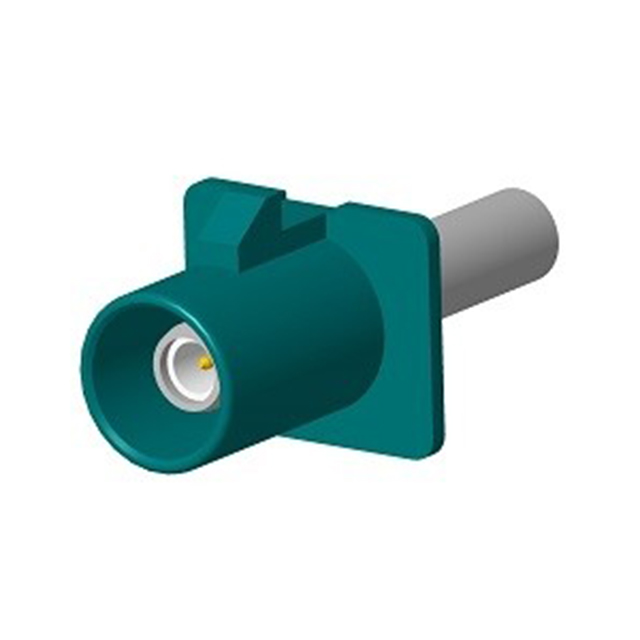

CONN FAKRA PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FA1-NZSP-C01-1
ActiveAmphenol RF
CONN FAKRA PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FA1-NZSP-C01-1 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code Z |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.3 dB |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
FA1-NZSP Series
| Part | Impedance | Features | Insertion Loss | Center Contact Plating | Body Finish | Body Material | Frequency - Max [Max] | Center Contact Material | Connector Type | Shield Termination | Mounting Feature | Cable Group | Connector Style | Fastening Type | Includes | Number of Ports | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 50 Ohms | Code Z | 0.3 dB | Gold | Nickel | Brass | 4 GHz | Brass | Male Pin Plug | Crimp | Flange | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Fakra SMB | Locking Ramp | 1 Connector 1 Contact 1 Ferrule | 1 | Crimp | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | |
Amphenol RF | 50 Ohms | Code Z | 0.3 dB | Gold | Gold | Brass | 4 GHz | Brass | Male Pin Plug | Solder | Fakra SMB | Locking Ramp | 1 | Solder | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Board Edge Cutout Surface Mount | |||
Amphenol RF | 50 Ohms | Code Z | 0.3 dB | Gold | Nickel | Brass | 4 GHz | Brass | Male Pin Plug | Crimp | Flange | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Fakra SMB | Locking Ramp | 1 Connector 1 Contact 1 Ferrule | 1 | Crimp | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | |
Amphenol RF | 50 Ohms | Code Z | 0.3 dB | Gold | Gold | Brass | 4 GHz | Brass | Male Pin Plug | Solder | Fakra SMB | Locking Ramp | 1 | Solder | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Board Edge Cutout Surface Mount Through Hole Right Angle | |||
Amphenol RF | 50 Ohms | Code Z | Gold | Gold | Brass | 4 GHz | Brass | Male Pin Plug | Solder | Fakra SMB | Locking Ramp | 1 | Solder | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FA1-NZSP Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Panel Mount Crimp
