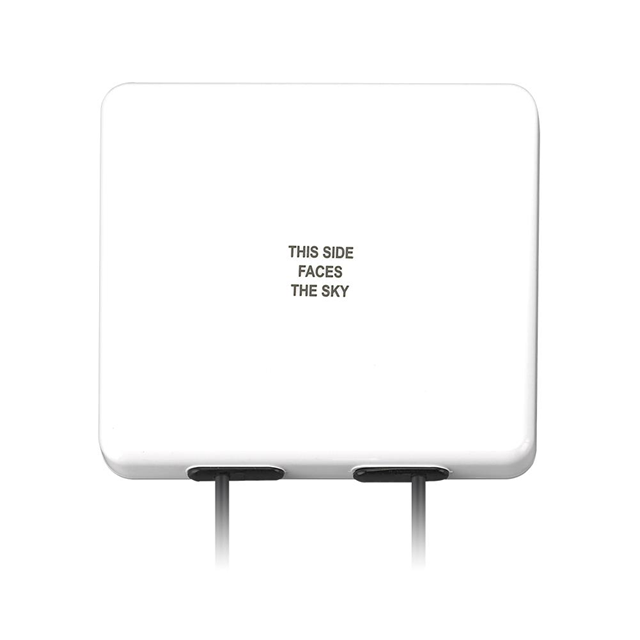

MA912.W.A.BI.001

Active

TAOGLAS

ANTENNA MIMO -5.97DBI GAIN 803MHZ/894MHZ/960MHZ/1880MHZ/1900MHZ/2170MHZ/2690MHZ/3600MHZ BOX

Search across all available documentation for this part.

Active

TAOGLAS

ANTENNA MIMO -5.97DBI GAIN 803MHZ/894MHZ/960MHZ/1880MHZ/1900MHZ/2170MHZ/2690MHZ/3600MHZ BOX

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Gain	Features	Features	Ingress Protection	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Frequency Group	Number of Bands	Applications	Frequency (Center/Band)	VSWR	Antenna Type
TAOGLAS MA912.W.A.BI.001	Cellular General ISM WiFi	0.787 in	20 mm	1.44 dBi 2.4 dBi 2.48 dBi 2.9 dBi 2.98 dBi 2.99 dBi 3.27 dBi	Cable	3 m	IP67	Adhesive	2.17 GHz 2.69 GHz 3.6 GHz 960 MHz	1.71 GHz 2.49 GHz 3.3 GHz 698 MHz	Wide Band	8	DCS GSM LTE PCS UMTS Wi-Fi	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 3.45 GHz 750.5 MHz 859 MHz 920 MHz	3	Module
TAOGLAS MA912.A.BI.001	Cellular General ISM	0.787 in	20 mm	1.44 dBi 2.4 dBi 2.48 dBi 2.9 dBi 2.98 dBi 2.99 dBi 3.27 dBi	Cable	3 m	IP67	Adhesive	2.17 GHz 2.69 GHz 3.6 GHz 960 MHz	1.71 GHz 2.49 GHz 3.3 GHz 698 MHz	Wide Band	8	DCS GSM LTE PCS UMTS	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 3.45 GHz 750.5 MHz 859 MHz 920 MHz	3	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 141.40

General part information

RF ANTENNA DCS, GSM, LTE, PCS, UMTS, Wi-Fi Module SMA Male Adhesive

Technical documentation and resources

No documents available
