MA912.A.BI.001

Active

TAOGLAS

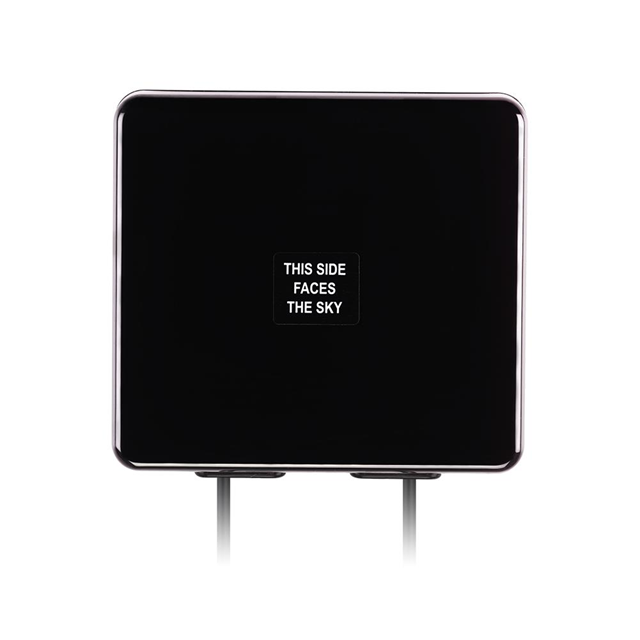

MA912.A.BI.001 2IN1 ADHESIVE 4G

Search across all available documentation for this part.

Active

TAOGLAS

MA912.A.BI.001 2IN1 ADHESIVE 4G

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Gain	Features	Features	Ingress Protection	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Frequency Group	Number of Bands	Applications	Frequency (Center/Band)	VSWR	Antenna Type
TAOGLAS MA912.W.A.BI.001	Cellular General ISM WiFi	0.787 in	20 mm	1.44 dBi 2.4 dBi 2.48 dBi 2.9 dBi 2.98 dBi 2.99 dBi 3.27 dBi	Cable	3 m	IP67	Adhesive	2.17 GHz 2.69 GHz 3.6 GHz 960 MHz	1.71 GHz 2.49 GHz 3.3 GHz 698 MHz	Wide Band	8	DCS GSM LTE PCS UMTS Wi-Fi	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 3.45 GHz 750.5 MHz 859 MHz 920 MHz	3	Module
TAOGLAS MA912.A.BI.001	Cellular General ISM	0.787 in	20 mm	1.44 dBi 2.4 dBi 2.48 dBi 2.9 dBi 2.98 dBi 2.99 dBi 3.27 dBi	Cable	3 m	IP67	Adhesive	2.17 GHz 2.69 GHz 3.6 GHz 960 MHz	1.71 GHz 2.49 GHz 3.3 GHz 698 MHz	Wide Band	8	DCS GSM LTE PCS UMTS	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 3.45 GHz 750.5 MHz 859 MHz 920 MHz	3	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 147.93

General part information

RF ANTENNA DCS, GSM, LTE, PCS, UMTS Module SMA Male Adhesive

Technical documentation and resources

No documents available
