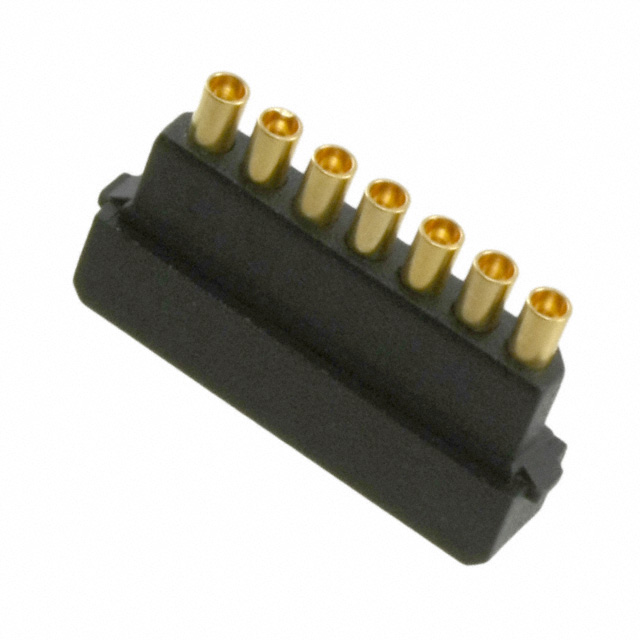

M80-8980705

Active

Harwin Inc.

BOARD CONNECTOR, 7 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, LEAD FREE

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 7 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Part	Color	Connector Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Cable Termination	Mounting Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type	Number of Positions
Harwin Inc. M80-8980305	Black	Receptacle	Discrete	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	1	Crimp	Free Hanging (In-Line)	Gold	24 AWG	28 AWG	Locking Ramp
Harwin Inc. M80-8980605	Black	Receptacle	Discrete	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	1	Crimp	Free Hanging (In-Line)	Gold	24 AWG	28 AWG	Locking Ramp	6
Harwin Inc. M80-8980705	Black	Receptacle	Discrete	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	1	Crimp	Free Hanging (In-Line)	Gold	24 AWG	28 AWG	Locking Ramp	7
Harwin Inc. M80-8980405	Black	Receptacle	Discrete	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	1	Crimp	Free Hanging (In-Line)	Gold	24 AWG	28 AWG	Locking Ramp	4
Harwin Inc. M80-8980205	Black	Receptacle	Discrete	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	1	Crimp	Free Hanging (In-Line)	Gold	24 AWG	28 AWG	Locking Ramp	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
