Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8980205 |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.67 | |
| 10 | $ 2.04 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.70 | |||
| 100 | $ 1.57 | |||
| 250 | $ 1.42 | |||
| 500 | $ 1.32 | |||
| 1000 | $ 1.23 | |||
| 2500 | $ 1.13 | |||
Description
General part information
M80-898 Series

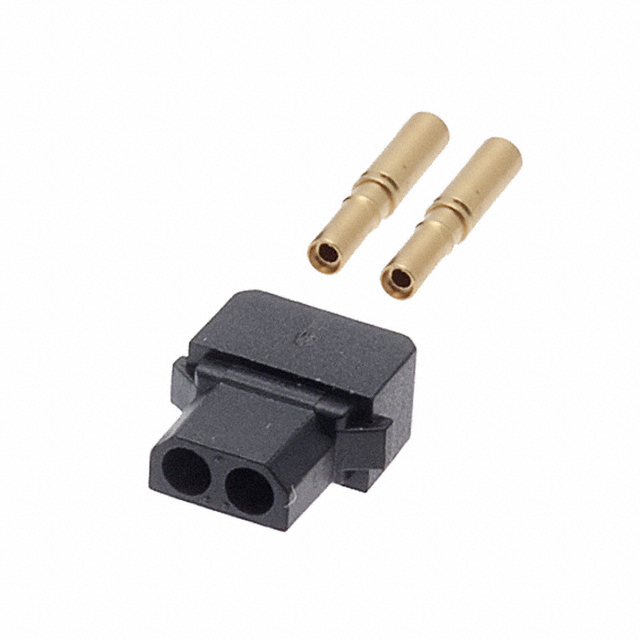

The M80-8980205 is a 2-contact 2mm female Datamate L-Tek SIL Cable Connector Kit with housing and contacts. Large bore is suitable for 24 to 28AWG cable (Ø1.1mm max insulation), M80-0130005 spare contacts. Housing is made of black UL94V-0 PBT with gold plated beryllium copper contact clip/brass shell contact base and gold plated termination. The M80 series socket has straight connector orientation and cable (crimp) connection type. It is suitable for Ø0.5mm mating pin size. The connector is intended for use as a low voltage connector in high packing density electronic equipment.
