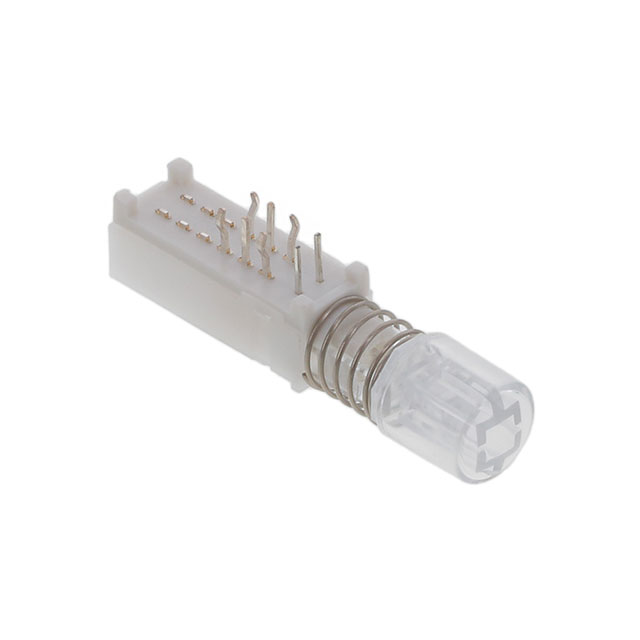

WBL2UEERQR05CLR

Active

E-Switch

SWITCH PUSHBUTTON DPDT 300MA 30V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WBL2UEERQR05CLR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	300 mA
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.7 VDC
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

WBL2 Series

Part	Voltage Rating - DC	Illumination Voltage (Nominal)	Termination Style	Current Rating (Amps)	Type	Switch Function	Illumination Type, Color	Circuit	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mechanical Life	Color - Actuator/Cap	Actuator Marking	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch WBL2UEEGYQR05BLKPWR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Green LED Yellow	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear
E-Switch WBL2UOAYBQR05CLR	30 V	1.7 VDC 3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-Mom	Blue LED Yellow	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEEGBQR05CLR	30 V	1.7 VDC 3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-On		DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking	Blue/Green	LED
E-Switch WBL2UEERQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	LED Red	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEERBQR05CLR	30 V	1.7 VDC 3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Blue/Red LED	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEEBQR05CLR	30 V	3.5 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Blue LED	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEEGQ	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	Green LED	DPDT	Plunger for Cap	-20 C	70 °C	Through Hole Right Angle	10000 Steps		No Marking
E-Switch WBL2UOARQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-Mom	LED Red	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEERQ	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-On	LED Red	DPDT	Plunger for Cap	-20 C	70 °C	Through Hole Right Angle	10000 Steps		No Marking
E-Switch WBL2UOAGQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated Standard	On-Mom	Green LED	DPDT	Button Round	-20 C	70 °C	Through Hole Right Angle	10000 Steps	Clear	No Marking
