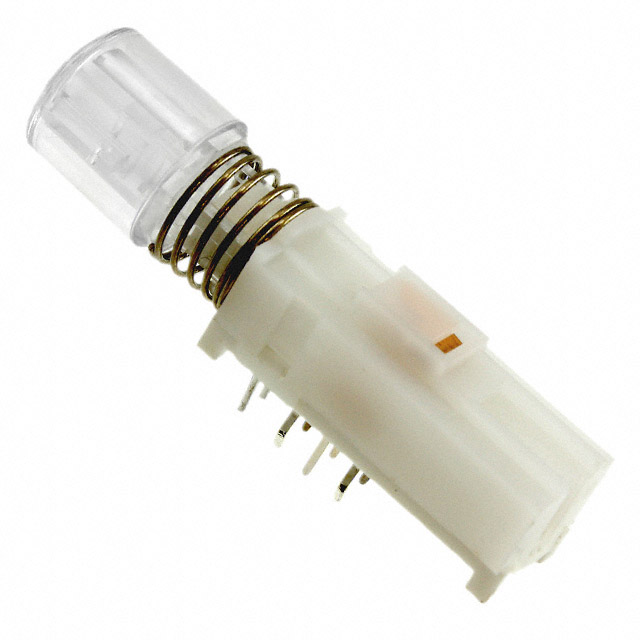

WBL2UEEGBQR05CLR
ActiveE-Switch
SWITCH PUSH DPDT 300MA 30V
Deep-Dive with AI
Search across all available documentation for this part.
WBL2UEEGBQR05CLR
ActiveE-Switch
SWITCH PUSH DPDT 300MA 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WBL2UEEGBQR05CLR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 300 mA |
| Illumination Type, Color [custom] | Blue/Green |
| Illumination Type, Color [custom] | LED |
| Illumination Voltage (Nominal) | 3.5 VDC, 1.7 VDC |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Illuminated, Standard |
| Voltage Rating - DC | 30 V |
WBL2 Series
| Part | Voltage Rating - DC | Illumination Voltage (Nominal) | Termination Style | Current Rating (Amps) | Type | Switch Function | Illumination Type, Color | Circuit | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Mechanical Life | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 30 V | 1.7 VDC | PC Pin | 300 mA | Illuminated Standard | On-On | Green LED Yellow | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | |||
E-Switch | 30 V | 1.7 VDC 3.5 VDC | PC Pin | 300 mA | Illuminated Standard | On-Mom | Blue LED Yellow | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | No Marking | ||
E-Switch | 30 V | 1.7 VDC 3.5 VDC | PC Pin | 300 mA | Illuminated Standard | On-On | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | No Marking | Blue/Green | LED | |
E-Switch | 30 V | 1.7 VDC | PC Pin | 300 mA | Illuminated Standard | On-On | LED Red | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | No Marking | ||
E-Switch | 30 V | 1.7 VDC 3.5 VDC | PC Pin | 300 mA | Illuminated Standard | On-On | Blue/Red LED | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | No Marking | ||
E-Switch | 30 V | 3.5 VDC | PC Pin | 300 mA | Illuminated Standard | On-On | Blue LED | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | No Marking | ||
E-Switch | 30 V | 1.7 VDC | PC Pin | 300 mA | Illuminated Standard | On-On | Green LED | DPDT | Plunger for Cap | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | No Marking | |||
E-Switch | 30 V | 1.7 VDC | PC Pin | 300 mA | Illuminated Standard | On-Mom | LED Red | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | No Marking | ||
E-Switch | 30 V | 1.7 VDC | PC Pin | 300 mA | Illuminated Standard | On-On | LED Red | DPDT | Plunger for Cap | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | No Marking | |||
E-Switch | 30 V | 1.7 VDC | PC Pin | 300 mA | Illuminated Standard | On-Mom | Green LED | DPDT | Button Round | -20 C | 70 °C | Through Hole Right Angle | 10000 Steps | Clear | No Marking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.77 | |
| 84 | $ 3.70 | |||
| 1008 | $ 3.08 | |||
Description
General part information
WBL2 Series
Pushbutton Switch DPDT Standard, Illuminated Through Hole, Right Angle
