AMW007-E03

Obsolete

Silicon Labs

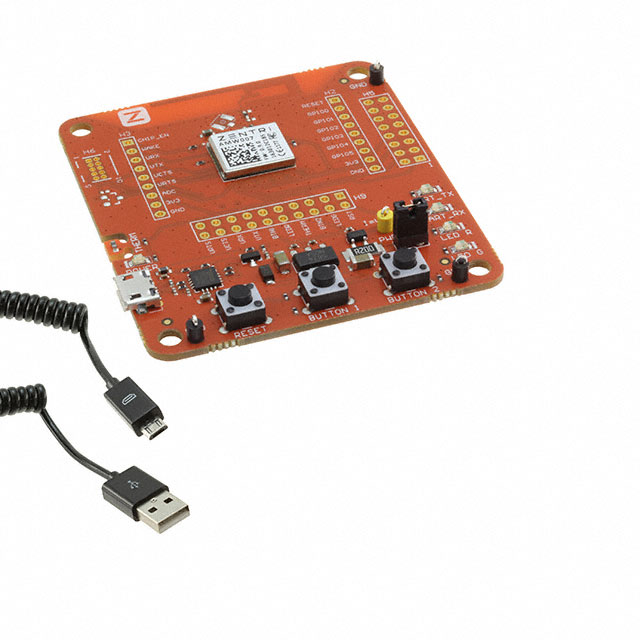

AMW007 DEVELOPER BOARD

Search across all available documentation for this part.

Obsolete

Silicon Labs

AMW007 DEVELOPER BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	AMW007-E03

Contents	Board(s)
For Use With/Related Products	AMW006
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	AMW006

Part	Serial Interfaces	RF Family/Standard	Data Rate	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Current - Receiving	Sensitivity	Power - Output	Current - Transmitting [Min]	Current - Transmitting [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency [Max]	Frequency [Min]	Type	Frequency	Contents	Utilized IC / Part	For Use With/Related Products	Supplied Contents	Voltage - Supply
Silicon Labs AMW007-1.3.0R	PWM SPI UART	WiFi	72.2 Mbps	802.11b/g/n	3.6 V	3 V	Surface Mount	65 mA	-93 dBm	20 dBm	100 mA	200 mA	85 °C	-40 °C	38-SMD Module	2.484 GHz	2.412 GHz
Silicon Labs AMW007-E04																		Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	2.4 GHz	Board(s)	AMW006
Silicon Labs AMW007-E03																		Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	2.4 GHz	Board(s)	AMW006	AMW006	Board(s)
Silicon Labs AMW007-1.1.2R
Silicon Labs AMW007-1.2.0R	SPI UART	WiFi		802.11b/g/n			Surface Mount	65 mA	-93 dBm	20 dBm	100 mA	200 mA	85 °C	-40 °C	Module				2.4 GHz					3.3 V
Silicon Labs AMW007-1.4.0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 40.31

General part information

AMW006 Medusa, Spectre Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
