AMW007-E04

Silicon Labs

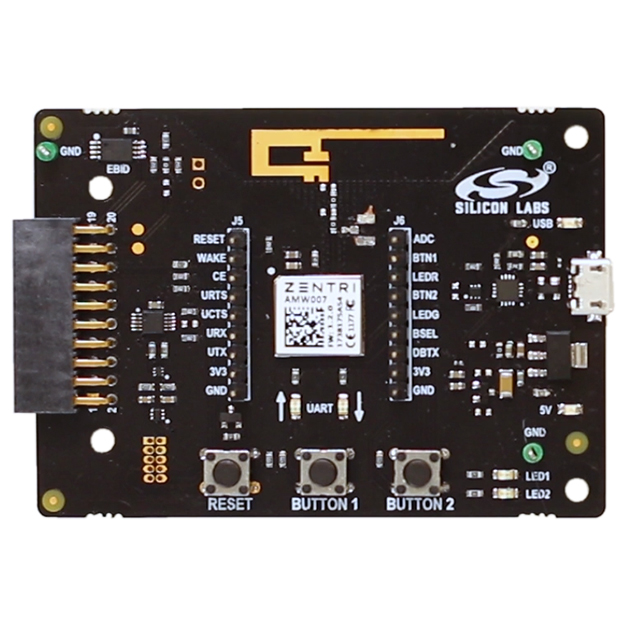

AMW007 EXPANSION BOARD

Search across all available documentation for this part.

Silicon Labs

AMW007 EXPANSION BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	AMW007-E04

Contents	Board(s)
Frequency	2.4 GHz
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	AMW006

Part	Serial Interfaces	RF Family/Standard	Data Rate	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Current - Receiving	Sensitivity	Power - Output	Current - Transmitting [Min]	Current - Transmitting [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency [Max]	Frequency [Min]	Type	Frequency	Contents	Utilized IC / Part	For Use With/Related Products	Supplied Contents	Voltage - Supply
Silicon Labs AMW007-1.3.0R	PWM SPI UART	WiFi	72.2 Mbps	802.11b/g/n	3.6 V	3 V	Surface Mount	65 mA	-93 dBm	20 dBm	100 mA	200 mA	85 °C	-40 °C	38-SMD Module	2.484 GHz	2.412 GHz
Silicon Labs AMW007-E04																		Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	2.4 GHz	Board(s)	AMW006
Silicon Labs AMW007-E03																		Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	2.4 GHz	Board(s)	AMW006	AMW006	Board(s)
Silicon Labs AMW007-1.1.2R
Silicon Labs AMW007-1.2.0R	SPI UART	WiFi		802.11b/g/n			Surface Mount	65 mA	-93 dBm	20 dBm	100 mA	200 mA	85 °C	-40 °C	Module				2.4 GHz					3.3 V
Silicon Labs AMW007-1.4.0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.86

General part information

AMW006 - Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
