19360161521

Active

HARTING Technology Group

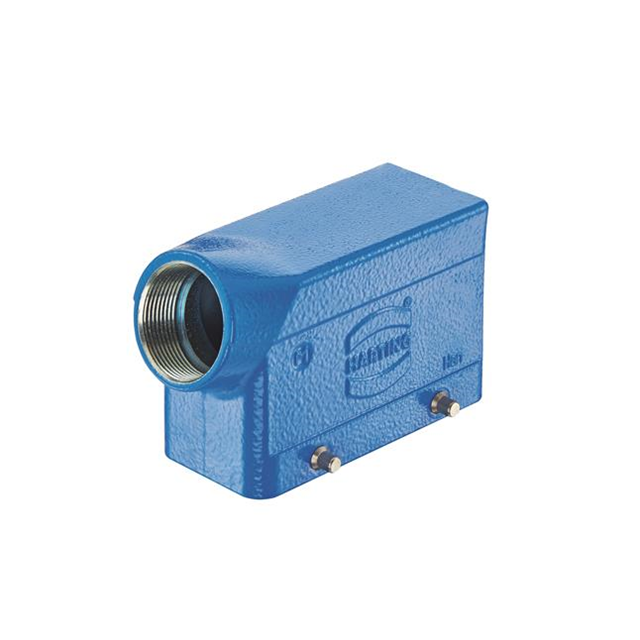

16B EX HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M25 (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

16B EX HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M25 (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	19360161521

Connector Type	Hood
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	16 B
Style	Side Entry
Thread Size	M25

Part	Thread Size	Lock Location	Size	Ingress Protection	Housing Material	Style	Housing Finish	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]
HARTING Technology Group 19360161521	M25	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	Zinc Die Cast	Side Entry	Powder Coated	Blue	-20 C	40 °C	Hood
HARTING Technology Group 19360161442	M32	Locking Clip (1) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	Zinc Die Cast	Top Entry	Powder Coated	Blue	-20 C	40 °C	Hood	1.693 in	93.5 mm	43 mm	3.681 "	1.772 in	45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 16B IP65 - Dust Tight, Water Resistant
