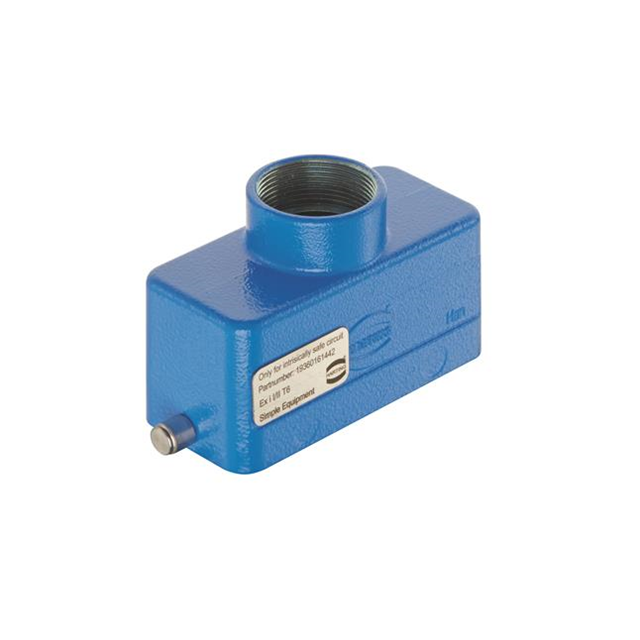

19360161442

LTB

HARTING Technology Group

HAN B TOP ENTRY LC M32 EXI_FOR S

Search across all available documentation for this part.

LTB

HARTING Technology Group

HAN B TOP ENTRY LC M32 EXI_FOR S

Technical Specifications

Parameters and characteristics for this part

Specification	19360161442

Connector Type	Hood
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	1.772 in
Size / Dimension [z]	45 mm
Style	Top Entry
Thread Size	M32

Part	Thread Size	Lock Location	Size	Ingress Protection	Housing Material	Style	Housing Finish	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]
HARTING Technology Group 19360161521	M25	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	Zinc Die Cast	Side Entry	Powder Coated	Blue	-20 C	40 °C	Hood
HARTING Technology Group 19360161442	M32	Locking Clip (1) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	Zinc Die Cast	Top Entry	Powder Coated	Blue	-20 C	40 °C	Hood	1.693 in	93.5 mm	43 mm	3.681 "	1.772 in	45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 41.08

General part information

Hood Connector Top Entry M32 16B IP65 - Dust Tight, Water Resistant
