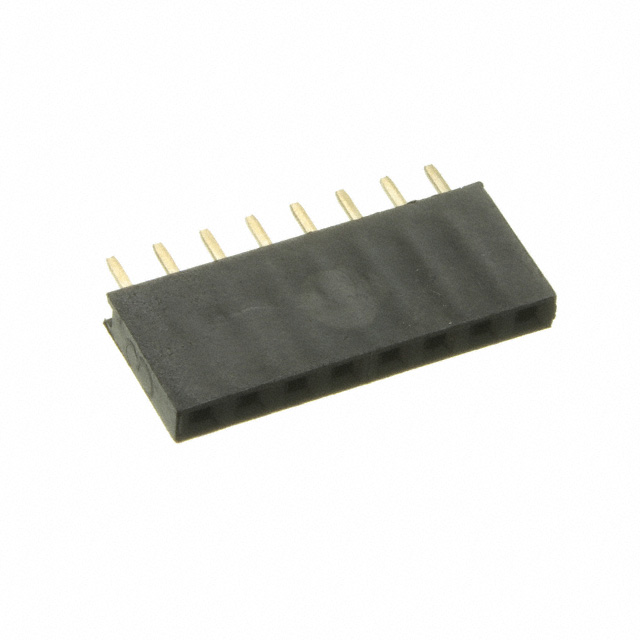

RS1-08-G
ActiveAdam Tech
RECEPTACLE STRIP 8P 2.54MM PITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS1-08-G |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
| Voltage Rating | 250 VAC |
RS1 Series
| Part | Contact Type | Current Rating (Amps) | Contact Finish - Mating | Connector Type | Insulation Material | Number of Positions Loaded | Insulation Color | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Voltage Rating | Termination | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Material | Insulation Height | Insulation Height | Number of Positions | Contact Finish Thickness - Post | Contact Finish - Post | Contact Shape | Fastening Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Forked | 3 A | Gold | Receptacle | Polybutylene Terephthalate (PBT) Glass Filled | All | Black | Through Hole | 0.1 in | 2.54 mm | Flash | 250 VDC | Solder | 0.118 in | 3 mm | UL94 V-0 | Phosphor Bronze | 0.335 " | 8.51 mm | 4 | Flash | Gold | Square | Push-Pull | 1 | 105 ░C | -40 °C |
Adam Tech | Forked | 3 A | Gold | Receptacle | Polybutylene Terephthalate (PBT) Glass Filled | All | Black | Through Hole | 0.1 in | 2.54 mm | Flash | 250 VAC | Solder | 0.118 in | 3 mm | UL94 V-0 | Brass | 0.335 " | 8.51 mm | 8 | Flash | Gold | Square | Push-Pull | 1 | 105 ░C | -40 °C |
Adam Tech | Forked | 3 A | Gold | Receptacle | Polybutylene Terephthalate (PBT) Glass Filled | All | Black | Through Hole | 0.1 in | 2.54 mm | Flash | 250 VAC | Solder | 0.118 in | 3 mm | UL94 V-0 | Brass | 0.335 " | 8.51 mm | 6 | Flash | Gold | Square | Push-Pull | 1 | 105 ░C | -40 °C |
Adam Tech | Forked | 3 A | Gold | Receptacle | Polybutylene Terephthalate (PBT) Glass Filled | All | Black | Through Hole | 0.1 in | 2.54 mm | Flash | 250 VAC | Solder | 0.118 in | 3 mm | UL94 V-0 | Brass | 0.335 " | 8.51 mm | 2 | Flash | Gold | Square | Push-Pull | 1 | 105 ░C | -40 °C |
Adam Tech | Forked | 3 A | Gold | Receptacle | Polybutylene Terephthalate (PBT) Glass Filled | All | Black | Through Hole | 0.1 in | 2.54 mm | Flash | 250 VAC | Solder | 0.118 in | 3 mm | UL94 V-0 | Brass | 0.335 " | 8.51 mm | 11 | Flash | Gold | Square | Push-Pull | 1 | 105 ░C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.60 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| 5000 | $ 0.23 | |||
| 10000 | $ 0.21 | |||
Description
General part information
RS1 Series
8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
