RS1-04-G

Active

Adam Tech

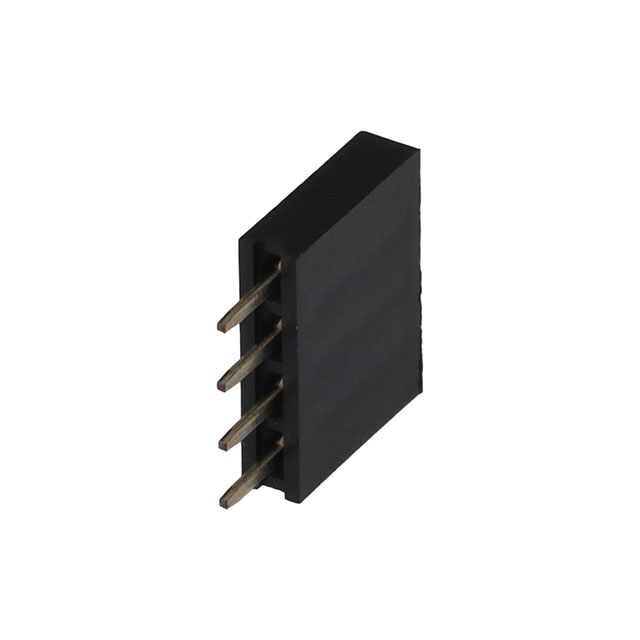

RECEPTACLE STRIP 4P 2.54MM PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

RS1-04-G

Active

Adam Tech

RECEPTACLE STRIP 4P 2.54MM PITCH

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RS1-04-G

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

RS1 Series

Part	Contact Type	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Insulation Material	Number of Positions Loaded	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Voltage Rating	Termination	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Post	Contact Finish - Post	Contact Shape	Fastening Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]
Adam Tech RS1-04-G	Forked	3 A	Gold	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	All	Black	Through Hole	0.1 in	2.54 mm	Flash	250 VDC	Solder	0.118 in	3 mm	UL94 V-0	Phosphor Bronze	0.335 "	8.51 mm	4	Flash	Gold	Square	Push-Pull	1	105 ░C	-40 °C
Adam Tech RS1-08-G	Forked	3 A	Gold	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	All	Black	Through Hole	0.1 in	2.54 mm	Flash	250 VAC	Solder	0.118 in	3 mm	UL94 V-0	Brass	0.335 "	8.51 mm	8	Flash	Gold	Square	Push-Pull	1	105 ░C	-40 °C
Adam Tech RS1-06-G	Forked	3 A	Gold	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	All	Black	Through Hole	0.1 in	2.54 mm	Flash	250 VAC	Solder	0.118 in	3 mm	UL94 V-0	Brass	0.335 "	8.51 mm	6	Flash	Gold	Square	Push-Pull	1	105 ░C	-40 °C
Adam Tech RS1-02-G	Forked	3 A	Gold	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	All	Black	Through Hole	0.1 in	2.54 mm	Flash	250 VAC	Solder	0.118 in	3 mm	UL94 V-0	Brass	0.335 "	8.51 mm	2	Flash	Gold	Square	Push-Pull	1	105 ░C	-40 °C
Adam Tech RS1-11-G	Forked	3 A	Gold	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	All	Black	Through Hole	0.1 in	2.54 mm	Flash	250 VAC	Solder	0.118 in	3 mm	UL94 V-0	Brass	0.335 "	8.51 mm	11	Flash	Gold	Square	Push-Pull	1	105 ░C	-40 °C
