09370161230

Active

HARTING Technology Group

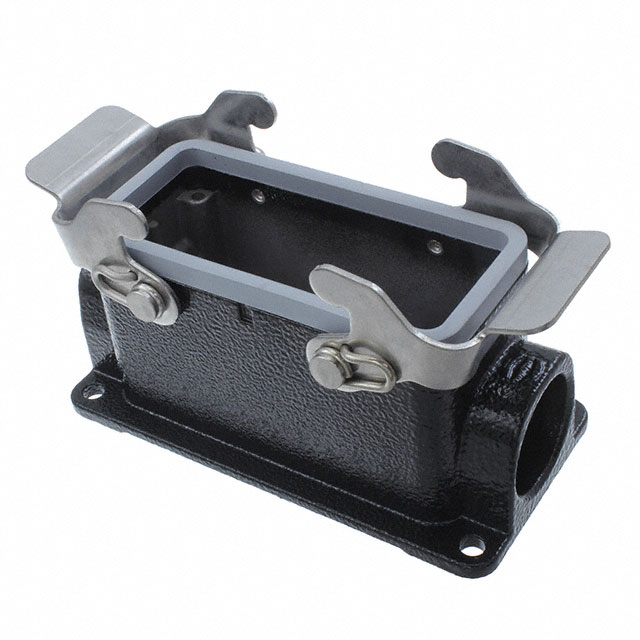

HAN M BASE SURFACE LC 2 LEVERS 1 ENTRY P ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN M BASE SURFACE LC 2 LEVERS 1 ENTRY P ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09370161230

Connector Type	Base - Box Mount
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension	57 mm, 55.8 mm, 117 mm
Size / Dimension [x]	4.606 "
Size / Dimension [y]	2.244 "
Size / Dimension [z]	2.197 "
Style	Side Entry
Thread Size	PG21

Part	Size	Style	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Finish	Connector Type	Housing Material	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Housing Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09370161230	16 B	Side Entry	Locking Clip (2) on Base Bottom	125 °C	-40 °C	PG21	Powder Coated	Base - Box Mount	Aluminum Die Cast	55.8 mm 57 mm 117 mm	4.606 "	2.197 "	2.244 "	IP65 - Dust Tight Water Resistant	Black
HARTING Technology Group 09370161520	16 B	Side Entry	Locking Clip (2) on Base Bottom	125 °C	-40 °C	PG21	Epoxy Powder Paint	Hood	Aluminum Die Cast		3.681 "	2.461 in	1.693 in	IP65 - Dust Tight Water Resistant	Black	93.5 mm	62.5 mm	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry PG21 16B IP65 - Dust Tight, Water Resistant
