09370161520

Active

HARTING Technology Group

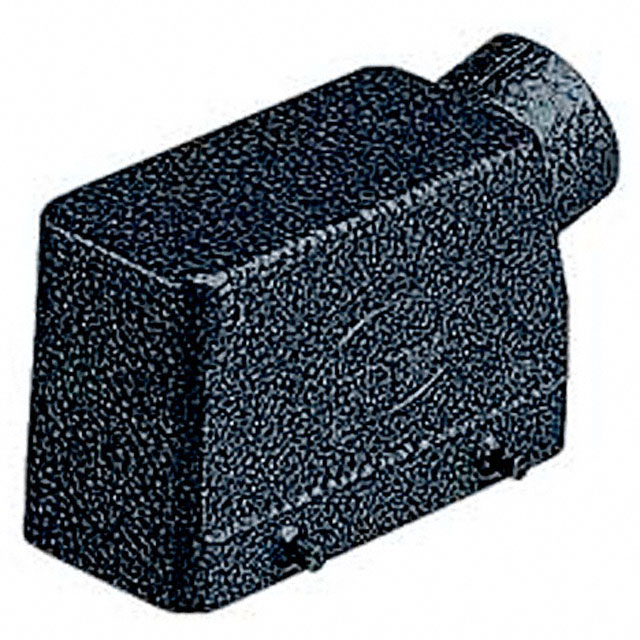

HEAVY DUTY CONNECTOR, PG21 SIDE ENTRY, 4 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09370161520

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG21 SIDE ENTRY, 4 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09370161520

Connector Type	Hood
Housing Color	Black
Housing Finish	Epoxy Powder Paint
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	62.5 mm
Size / Dimension [z]	2.461 in
Style	Side Entry
Thread Size	PG21

09370161 Series

Part	Size	Style	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Finish	Connector Type	Housing Material	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Housing Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09370161230	16 B	Side Entry	Locking Clip (2) on Base Bottom	125 °C	-40 °C	PG21	Powder Coated	Base - Box Mount	Aluminum Die Cast	55.8 mm 57 mm 117 mm	4.606 "	2.197 "	2.244 "	IP65 - Dust Tight Water Resistant	Black
HARTING Technology Group 09370161520	16 B	Side Entry	Locking Clip (2) on Base Bottom	125 °C	-40 °C	PG21	Epoxy Powder Paint	Hood	Aluminum Die Cast		3.681 "	2.461 in	1.693 in	IP65 - Dust Tight Water Resistant	Black	93.5 mm	62.5 mm	43 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.62
		10	$ 85.53
		25	$ 80.18
		50	$ 76.36
		100	$ 73.29
Newark	Each	1	$ 104.37
		10	$ 98.50
		25	$ 95.57
		50	$ 88.54
		100	$ 83.84

Description

General part information

09370161 Series

The Han M series 24B size Housing made of aluminium die-cast. It is available in bulkhead mounted and surface mounted side entry. It supports cable to cable side entry.
