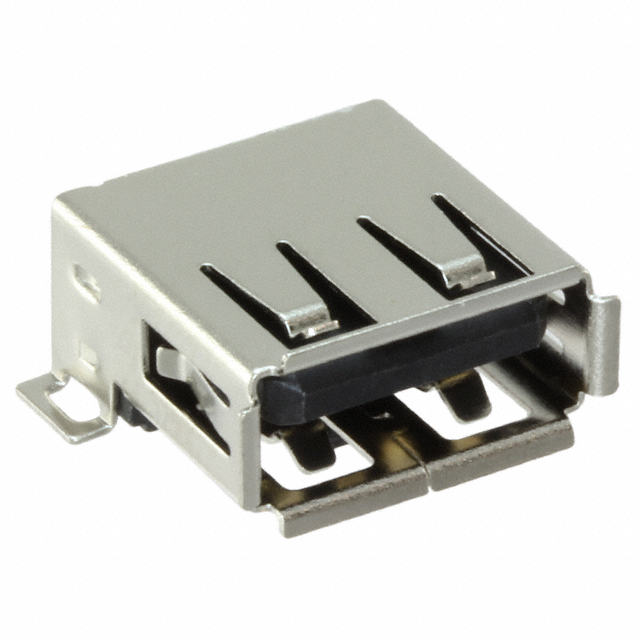

USB-A-S-F-B-SM2
ActiveSamtec Inc.
CONN RCPT USB2.0 TYPEA 4P SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
USB-A-S-F-B-SM2
ActiveSamtec Inc.
CONN RCPT USB2.0 TYPEA 4P SMD RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-A-S-F-B-SM2 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Features | Solder Retention, Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -50 °C |
| Shell/Shielding Material | Copper Alloy |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.96 | |
| 50 | $ 1.52 | |||
| 100 | $ 1.23 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 1.00 | |||
Description
General part information
USB-A Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Surface Mount, Right Angle; Through Hole
