USB-A-S-F-W-SM2-R-TR

Active

Samtec Inc.

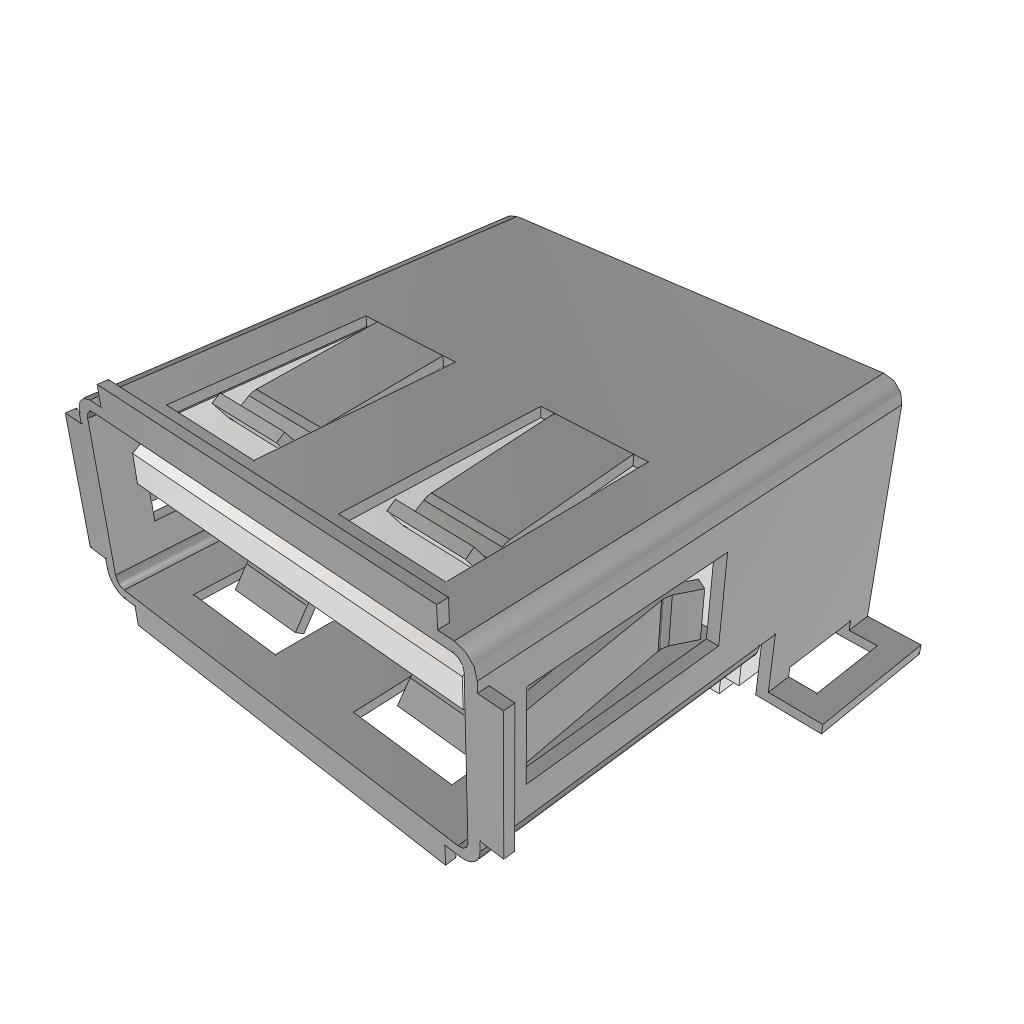

CONN USB 2.0 TYPE A RCP 4 POS 2.5MM/2MM SOLDER RA SMD 4 TERMINAL 1 PORT T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

USB-A-S-F-W-SM2-R-TR

Active

Samtec Inc.

CONN USB 2.0 TYPE A RCP 4 POS 2.5MM/2MM SOLDER RA SMD 4 TERMINAL 1 PORT T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	USB-A-S-F-W-SM2-R-TR

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Features	Solder Retention, Board Guide
Gender	Receptacle
Insulation Color	White
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Shell/Shielding Material	Copper Alloy
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

USB-A Series

Part	Termination	Contact Finish	Mating Cycles	Voltage - Rated	Features	Number of Contacts [custom]	Material Flammability Rating	Connector Type	Specifications	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Mounting Feature	Mounting Type	Shell/Shielding Material	Gender	Shielding	Number of Contacts
Samtec Inc. USB-A-S-F-W-SM2-TR	Solder	Gold	1500	30 VAC	Board Guide Solder Retention	4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	White	Horizontal	Surface Mount Right Angle Through Hole	Copper Alloy	Receptacle
Samtec Inc. USB-A-S-S-W-VU-R	Solder	Gold	1500	30 VAC		4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	White	Flag Vertical	Through Hole Right Angle	Phosphor Bronze	Receptacle
Samtec Inc. USB-A-S-F-B-SM2-R	Solder	Gold	1500	30 VAC		4		USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	Black	Horizontal	Surface Mount Right Angle		Receptacle	Shielded
Samtec Inc. USB-A-S-F-W-SM2-R-TR	Solder	Gold	1500	30 VAC	Board Guide Solder Retention	4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	White	Horizontal	Surface Mount Right Angle Through Hole	Copper Alloy	Receptacle
Samtec Inc. USB-A-D-S-W-TH-R	Solder	Gold	1500	30 VAC			UL94 V-0	Stacked USB-A (USB TYPE-A)	USB 2.0	2	85 °C	-50 °C	White	Horizontal	Through Hole Right Angle		Receptacle		8
Samtec Inc. USB-A-S-F-B-SM2	Solder	Gold	1500	30 VAC	Board Guide Solder Retention	4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	Black	Horizontal	Surface Mount Right Angle Through Hole	Copper Alloy	Receptacle
Samtec Inc. USB-A-S-S-B-SM2	Solder	Gold	1500	30 VAC	Board Guide Solder Retention	4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	Black	Horizontal	Surface Mount Right Angle Through Hole	Copper Alloy	Receptacle
Samtec Inc. USB-A-S-S-W-SM2-R	Solder	Gold	1500	30 VAC	Board Guide Solder Retention	4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	White	Horizontal	Surface Mount Right Angle Through Hole	Copper Alloy	Receptacle
Samtec Inc. USB-A-S-F-B-TH-R	Solder	Gold	1500	30 VAC		4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	Black	Horizontal	Through Hole Right Angle	Brass	Receptacle	Shielded
Samtec Inc. USB-A-S-F-W-SM2	Solder	Gold	1500	30 VAC	Board Guide Solder Retention	4	UL94 V-0	USB-A (USB TYPE-A)	USB 2.0	1	85 °C	-50 °C	White	Horizontal	Surface Mount Right Angle	Copper Alloy	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.11
Digikey	Cut Tape (CT)	1	$ 2.11
		50	$ 1.64
		100	$ 1.33
	Digi-Reel®	1	$ 2.11
		50	$ 1.64
		100	$ 1.33
	Tape & Reel (TR)	250	$ 1.33
		500	$ 1.13
		1250	$ 1.00

Description

General part information

USB-A Series

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Surface Mount, Right Angle; Through Hole
